Application
Inside building, suitable for indoor use
*All images are indicative
| Product Type | Fiber Cable |
| Performance Level | Singlemode |
| Fiber Count | 4 Fiber |
| Diameter (mm) Nominal | 5.0 +/- 0.5 |
| Weight (Kg./Km) Nominal | 30 +/- 10 |
| Tensile strength (N) Installation | 40 |
| Tensile strength (N) Operating | 20 |
| Bending Radius Temporary | 10D |
| Bending Radius Permanent | 20D |
| Installation Temperature | -20° to +50° C |
| Operating Temperature | -40° to +70° C |
| Color Coding | Blue* Orange* Green* Brown* |
| RoHS | Compliant |
| Part Number | Description |

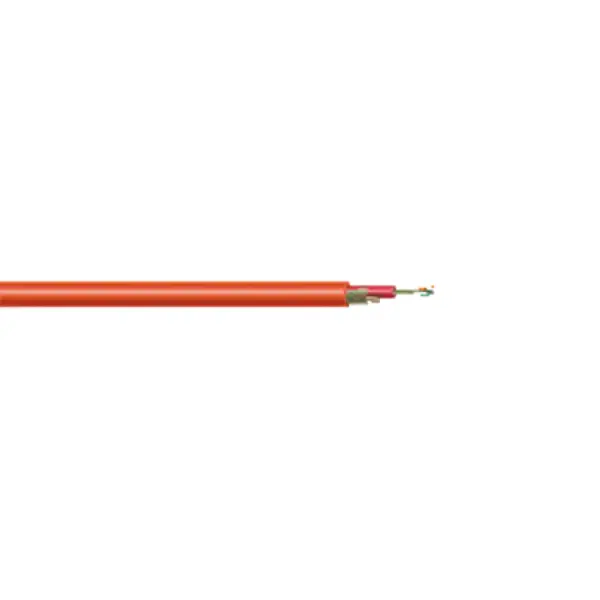

| API-F6574A2 | Uni Tube, Single Sheath, G657A2, Single Mode Indoor FTTH 4 Core Optical fiber cable |
| Product Type | Fiber Cable |
| Performance Level | Singlemode |
| Fiber Count | 4 Fiber |
| Diameter (mm) Nominal | 5.0 +/- 0.5 |
| Weight (Kg./Km) Nominal | 30 +/- 10 |
| Tensile strength (N) Installation | 40 |
| Tensile strength (N) Operating | 20 |
| Bending Radius Temporary | 10D |
| Bending Radius Permanent | 20D |
| Installation Temperature | -20° to +50° C |
| Operating Temperature | -40° to +70° C |
| Color Coding | Blue* Orange* Green* Brown* |
| RoHS | Compliant |
| Part Number | Description |
| API-F6574A2 | Uni Tube, Single Sheath, G657A2, Single Mode Indoor FTTH 4 Core Optical fiber cable |
