API-F65712A2

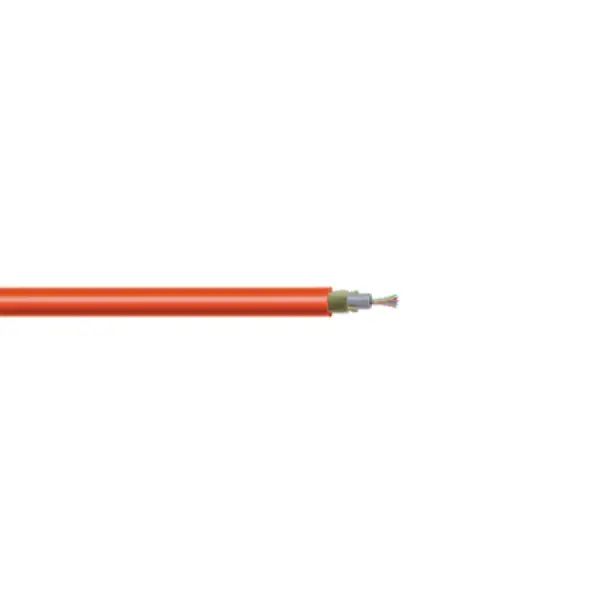

Uni Tube, Single Sheath, G657A2, Single Mode Indoor FTTH 12 Core Optical fiber cable

Application
Inside building, suitable for indoor use
*All images are indicative

Product TypeFiber Cable
Performance LevelSinglemode
Fiber Count12 Fiber
Diameter (mm) Nominal5.0 +/- 0.5
Weight (Kg./Km) Nominal30 +/- 10
Tensile strength (N) Installation200
Tensile strength (N) Operating100
Bending Radius Temporary10D
Bending Radius Permanent20D
Installation Temperature-20° to +50° C
Operating Temperature-40° to +70° C
Color CodingBlue* Orange* Green* Brown* Grey* White* Red* Black* Yellow* Violet* Pink* Aqua*
RoHSCompliant

Data Sheet
Download : 248.03 KB Format : pdf Modified : 04-12-22

Part NumberDescription
API-F65712A2Uni Tube, Single Sheath, G657A2, Single Mode Indoor FTTH 12 Core Optical fiber cable

Specifications

Product TypeFiber Cable
Performance LevelSinglemode
Fiber Count12 Fiber
Diameter (mm) Nominal5.0 +/- 0.5
Weight (Kg./Km) Nominal30 +/- 10
Tensile strength (N) Installation200
Tensile strength (N) Operating100
Bending Radius Temporary10D
Bending Radius Permanent20D
Installation Temperature-20° to +50° C
Operating Temperature-40° to +70° C
Color CodingBlue* Orange* Green* Brown* Grey* White* Red* Black* Yellow* Violet* Pink* Aqua*
RoHSCompliant

Manuals & Warranties

Data Sheet
Download : 248.03 KB Format : pdf Modified : 04-12-22

Ordering Information

Part NumberDescription
API-F65712A2Uni Tube, Single Sheath, G657A2, Single Mode Indoor FTTH 12 Core Optical fiber cable
