APOF-ZTBI02C

Zipcord, LSZH, Indoor Tight-Buffered Interconnect 2 Core Fiber Optical Cable,Singlemode

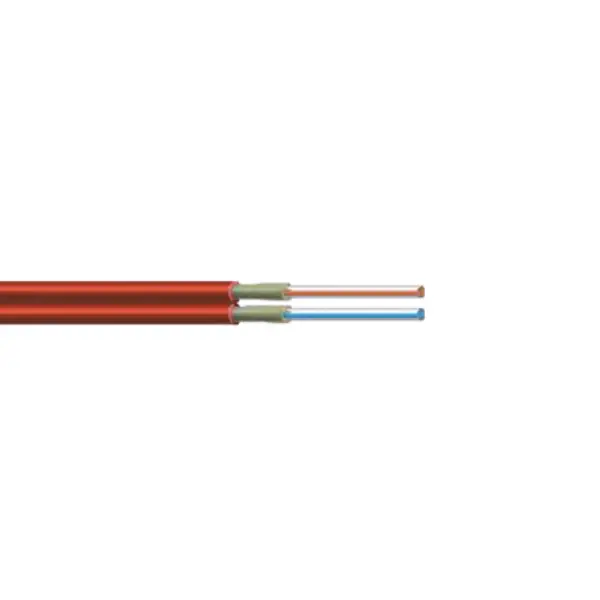

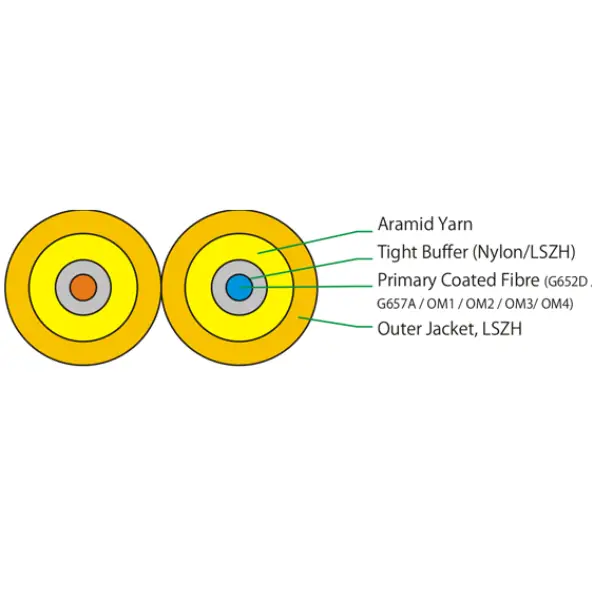

Zipcord cables are designed for interconnect applications. Two 900μm buffered fibers are surrounded by aramid yarn strength members and a flame-retardant LSZH jacket.

Application

  • Communication racks and wiring closets, walls, ceilings, floor ducts, etc
  • In the final connection to terminal devices such as workstation and computer terminals for high speed voice, video, data, and FTTx applications
  • Short run office & computer room cabling
  • Patch cords, Pigtails & Jumpers

*All images are indicative

Product TypeFiber Cable
Performance LevelSinglemode
Fiber Count2 Fiber
Flammability RatingLSZH
Diameter (mm) Nominal1.6/2.0/3.0
Weight (Kg./Km) Nominal15
Tensile Strength (long/short term)100/200N
Bending Radius Temporary10D
Bending Radius Permanent20D
Installation Temperature-20° to +50° C
Operating Temperature-40° to +70° C
Fiber TypeG.652D
RoHSCompliant

Part NumberDescription
APOF-ZTBI02CZipcord, LSZH, Indoor Tight-Buffered Interconnect 2 Core Fiber Optical Cable,Singlemode

Specifications

Product TypeFiber Cable
Performance LevelSinglemode
Fiber Count2 Fiber
Flammability RatingLSZH
Diameter (mm) Nominal1.6/2.0/3.0
Weight (Kg./Km) Nominal15
Tensile Strength (long/short term)100/200N
Bending Radius Temporary10D
Bending Radius Permanent20D
Installation Temperature-20° to +50° C
Operating Temperature-40° to +70° C
Fiber TypeG.652D
RoHSCompliant

Ordering Information

Part NumberDescription
APOF-ZTBI02CZipcord, LSZH, Indoor Tight-Buffered Interconnect 2 Core Fiber Optical Cable,Singlemode
