APOF-PT-209915

Simplex Pigtails LC UPC Simplex OS2 Singlemode, LSZH 1.5m Fiber Optic Pigtail, Yellow

FIBER OPTIC PIGTAILS Fiber optic pigtails assemblies are utilised in terminating fiber optic cables via fusion or mechanical splicing. High-quality pigtails combined with correct fusion splicing practices offer the best performance possible for fiber optic cable terminations *All images are indicative

Documentation Specifications

APOF-PT-219915

Simplex Pigtails LC APC Simplex OS2 Singlemode, LSZH 1.5m Fiber Optic Pigtail, Yellow

Documentation Specifications

APOF-PT-109915

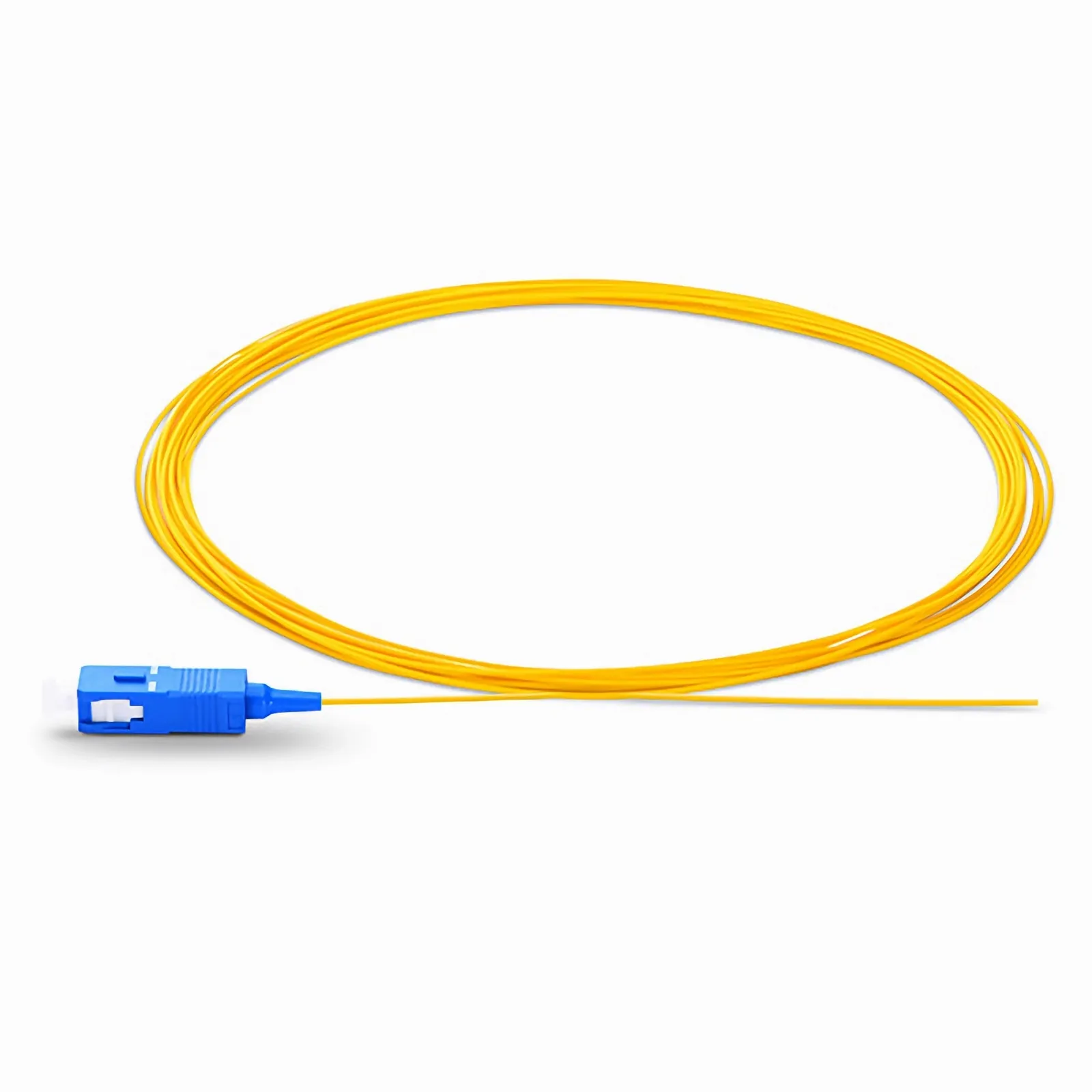

Simplex Pigtails SC UPC Simplex OS2 Singlemode, LSZH 1.5m Fiber Optic Pigtail, Yellow

Documentation Specifications

APOF-PT-109915S

Simplex Pigtails SC APC Simplex OS2 Singlemode, LSZH 1.5m Fiber Optic Pigtail, Yellow

Documentation Specifications

APOF-PT-2095015

Simplex Pigtails LC UPC Simplex OM3 50 /125 Multimode, LSZH 1.5m Fiber Optic Pigtail, Aqua

Documentation Specifications

APOF-PT-11ST15

Simplex Pigtails ST UPC Simplex OS2 Singlemode, LSZH 1.5m Fiber Optic Pigtail, Yellow

Documentation Specifications

APOF-PT-1095015

Simplex Pigtails SC UPC Simplex OM3 50 /125 Multimode, LSZH 1.5m Fiber Optic Pigtail, Aqua

Documentation Specifications

APOF-PT-11OM315

Simplex Pigtails ST UPC Simplex OM3 50 /125 Multimode, LSZH 1.5m Fiber Optic Pigtail, Orange

Documentation Specifications

APOF-PT-129915

Simplex Pigtails FC UPC Simplex OS2 Singlemode, LSZH 1.5m Fiber Optic Pigtail, Yellow

Documentation Specifications

Product Type	Fiber pigtail
Fiber Type	OS2
Number of Fibers	1
Connector Type	LC Simplex
Polish Type	UPC
Flammability Rating	Low Smoke Zero Halogen (LSZH)
Maximum Connector Insertion Loss (dB)	0.3
Maximum Connector Insertion Loss (dB)	50
Cable colour	Yellow
Overall Length (ft.)	4.92
Overall Length (m)	1.5
Operation Temperature	40°C to +85°C
Storage Temperature	50°C to +85°C
Standards Met	Meets or exceeds ISO/IEC 11801 . EN50173 -1,ANSI TIA/EIA 568B.
CE	Compliant

Product Type	Fiber pigtail
Fiber Type	OS2
Number of Fibers	1
Connector Type	LC Simplex
Polish Type	APC
Flammability Rating	Low Smoke Zero Halogen (LSZH)
Maximum Connector Insertion Loss (dB)	0.25
Minimum Connector Return Loss (dB)	60
Cable colour	Yellow
Overall Length (ft.)	4.92
Overall Length (m)	1.5
Other Length (m)	1 & 2
Operation Temperature	40°C to +85°C
Storage Temperature	50°C to +85°C
Standards Met	Meets or exceeds ISO/IEC 11801 . EN50173 -1,ANSI TIA/EIA 568B.
CE	Compliant

Product Type	Fiber pigtail
Fiber Type	OS2
Number of Fibers	1
Connector Type	SC Simplex
Polish Type	UPC
Flammability Rating	Low Smoke Zero Halogen (LSZH)
Maximum Connector Insertion Loss (dB)	0.3
Maximum Connector Insertion Loss (dB)	50
Cable colour	Yellow
Overall Length (ft.)	4.92
Overall Length (m)	1.5
Other Length (m)	1 & 2
Operation Temperature	40°C to +85°C
Storage Temperature	50°C to +85°C
Standards Met	Meets or exceeds ISO/IEC 11801 . EN50173 -1,ANSI TIA/EIA 568B.
CE	Compliant

Product Type	Fiber pigtail
Fiber Type	OS2
Number of Fibers	1
Connector Type	SC Simplex
Polish Type	APC
Flammability Rating	Low Smoke Zero Halogen (LSZH)
Maximum Connector Insertion Loss (dB)	0.25
Minimum Connector Return Loss (dB)	60
Cable colour	Yellow
Overall Length (ft.)	4.92
Overall Length (m)	1.5
Other Length (m)	1 & 2
Operation Temperature	40°C to +85°C
Storage Temperature	50°C to +85°C
Standards Met	Meets or exceeds ISO/IEC 11801 . EN50173 -1,ANSI TIA/EIA 568B.
CE	Compliant

Product Type	Fiber pigtail
Fiber Type	OM3 50 /125
Number of Fibers	1
Connector Type	LC Simplex
Polish Type	UPC
Flammability Rating	Low Smoke Zero Halogen (LSZH)
Maximum Connector Insertion Loss (dB)	0.3
Minimum Connector Return Loss (dB)	35
Cable colour	Aqua
Overall Length (ft.)	4.92
Overall Length (m)	1.5
Other Length (m)	1 & 2
Operation Temperature	40°C to +85°C
Storage Temperature	50°C to +85°C
Standards Met	Meets or exceeds ISO/IEC 11801 . EN50173 -1,ANSI TIA/EIA 568B.
CE	Compliant
