API-6576A2
thumbnail
thumbnail

API-6576A2

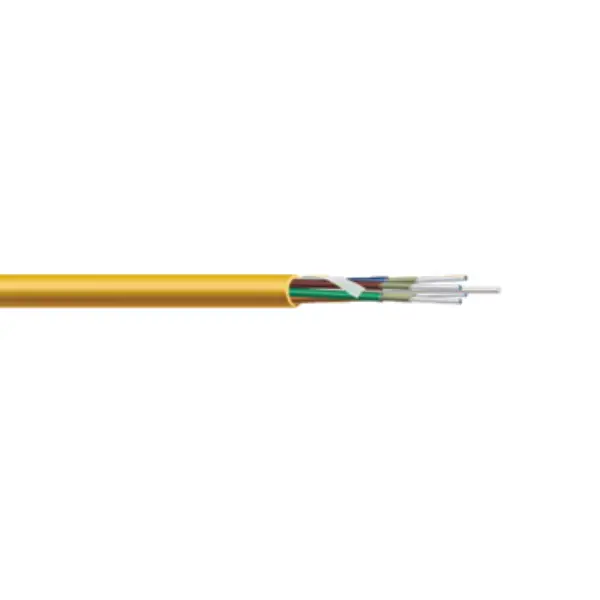

BREAKOUT TIGHT BUFFER UNARMOURED 6 CORE OPTICAL FIBRE CABLE,SM/MM

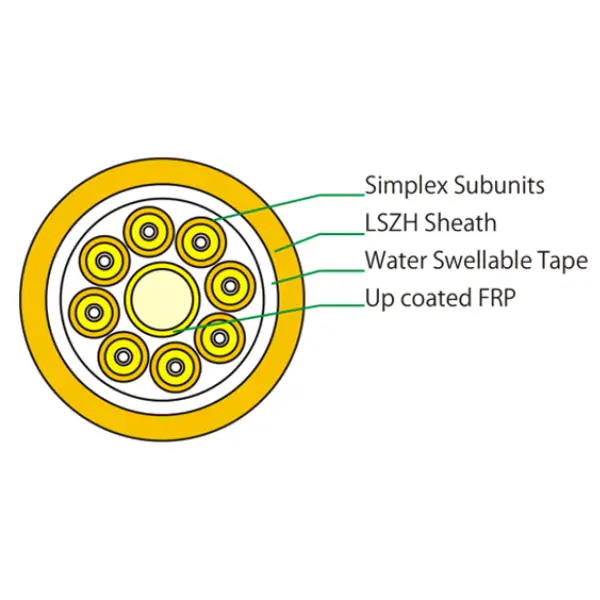

  • 4/6/8/12/24 Fibre of Single mode fibre in full compliance with ITU-T G65A2 (also available with G652.D SM Fibre and OM1 / OM2 / OM3 & OM4 MM Fibre)
  • FRP and Aramid Yarns as Strength Member
  • PA-12 tight coating on Fibre
  • LSZH Compound for sheathing for simplex subunits & outer sheath of cable

Application

  • Rugged multi fibre cross connect
  • Intra building backbone
  • Fibre backbone to communication closets

*All images are indicative

search-icon Find a Distributor HOW TO BUY

Product TypeFiber Cable
Performance LevelSM/MM
Fiber Count6 Fiber
Flammability RatingLSZH
Diameter (mm) Nominal9.0
Weight (Kg./Km) Nominal79
Tensile Strength (N) Installation800
Tensile Strength (N) Operating400
Bending Radius Temporary15D
Bending Radius Permanent20D
Installation Temperature-20° to +70° C
Operating Temperature-40° to +70° C
Fiber TypeG657A2

Part NumberDescription
API-6576A2BREAKOUT TIGHT BUFFER UNARMOURED 6 CORE OPTICAL FIBRE CABLE,SM
API-6576A2MBREAKOUT TIGHT BUFFER UNARMOURED 6 CORE OPTICAL FIBRE CABLE,MM OM1/OM2
API-6576A2M3BREAKOUT TIGHT BUFFER UNARMOURED 6 CORE OPTICAL FIBRE CABLE,MM OM3
API-6576A2M4BREAKOUT TIGHT BUFFER UNARMOURED 6 CORE OPTICAL FIBRE CABLE,MM OM4
