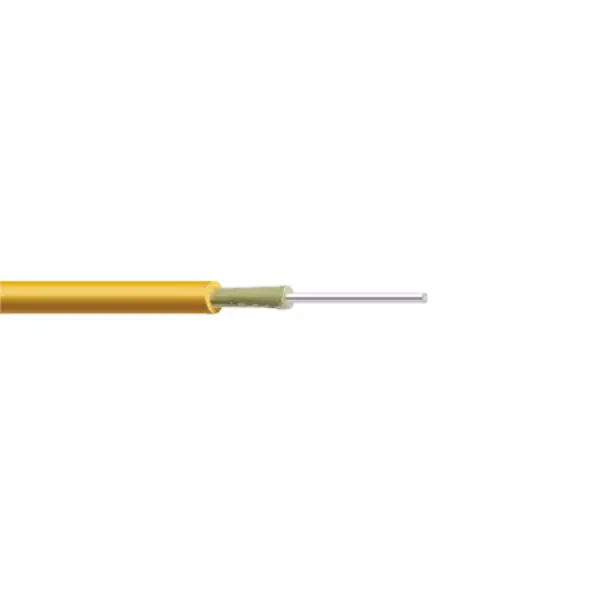

APOF-RTBI02C

Single-Fiber, LSZH, Indoor Tight-Buffered Interconnect 2 Core Fiber Optical Cable,Singlemode

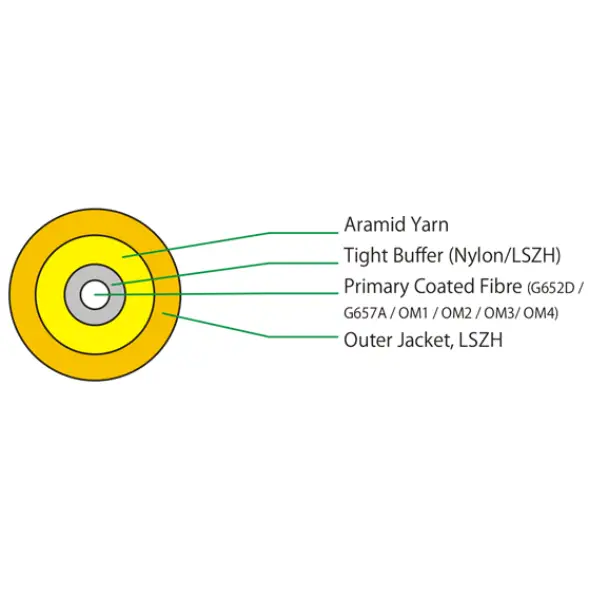

Single-fiber cables are designed for interconnect applications. A 900μm buffered fiber is surrounded by aramid yarn strength members and a flame-retardant LSZH jacket,

Application

  • Communication racks and wiring closets, walls, ceilings, floor ducts, etc
  • In the final connection to terminal devices such as workstation and computer terminals for high speed voice, video, data, and FTTx applications
  • Short run office & computer room cabling
  • Patch cords, Pigtails & Jumpers

*All images are indicative

Product TypeFiber Cable
Performance LevelSinglemode
Fiber Count2 Fiber
Flammability RatingLSZH
Diameter (mm) Nominal2.0/3.0
Weight (Kg./Km) Nominal8
Tensile Strength (long/short term)60/100
Bending Radius Temporary10D
Bending Radius Permanent20D
Installation Temperature-20° to +50° C
Operating Temperature-40° to +70° C
Fiber TypeG.652D

Part NumberDescription
APOF-RTBI02CSingle-Fiber, LSZH, Indoor Tight-Buffered Interconnect 2 Core Fiber Optical Cable,Singlemode

Specifications

Product TypeFiber Cable
Performance LevelSinglemode
Fiber Count2 Fiber
Flammability RatingLSZH
Diameter (mm) Nominal2.0/3.0
Weight (Kg./Km) Nominal8
Tensile Strength (long/short term)60/100
Bending Radius Temporary10D
Bending Radius Permanent20D
Installation Temperature-20° to +50° C
Operating Temperature-40° to +70° C
Fiber TypeG.652D

Ordering Information

Part NumberDescription
APOF-RTBI02CSingle-Fiber, LSZH, Indoor Tight-Buffered Interconnect 2 Core Fiber Optical Cable,Singlemode
