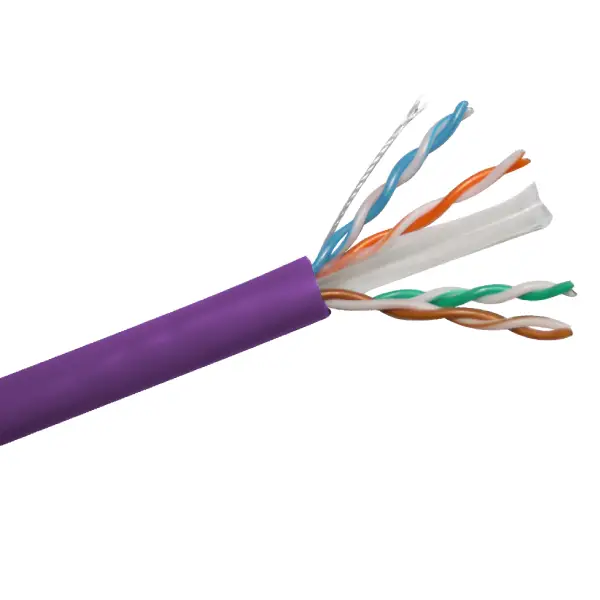

Cat 6 UTP Data Cable Consists of 4 Pair PE Insulated 23AWG Solid Annealed Bare Copper Conductors,PE Cross Separator Rip Cord, Low Smoke Zero Halogen (LSZH) Compound Outer Sheath.These structure cable suitable for 10Gigabyte Ethernet Applications and co mpatible with all known connection Systems , Ideal for high per formance workstation applications including voice/data systems, Digital video,Broadband and Voice over internet protocol etc.
| Product Type | Ethernet Cable |
| Cable Construction | U/UTP |
| Performance Level | Category 6 |
| Conductor Gauge (AWG) | 23 |
| Cable Diameter(mm) | 6.20 ± 0.30 |
| Number of Pairs | 4 |
| Insulation Diameter (mm) | 1.02± 0.03 |
| Outer Sheath | Low Smoke Zero Halogen ( LSZH ) |
| Conductor Material | Copper |
| Color | Violet |
| Available Packaging (m) | 500 |
| Breaking strength | 400 N (max.) |
| Bending radius | 4 x overall diameter (min.) |
| Temperature Range | -20 °C up to + 60 °C |
| RoHS Compliance | Compliant |
| Part Number | Description |
| APCZH-4-C6VT5 | Cat6 Unshielded (UTP) 4 Pair 23 AWG LSZH 500m Cable,Violet |
