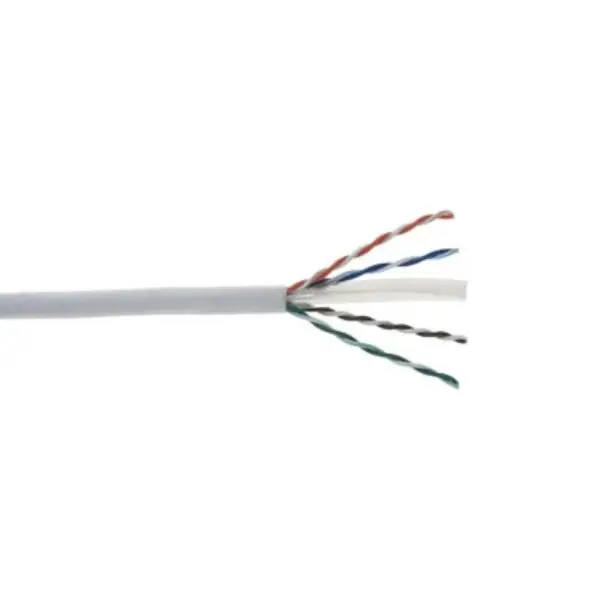

Cat 6 UTP Data Cable Consists of 4 Pair PE Insulated 23AWG Solid Annealed Bare Copper Conductors,PE Cross Separator Rip Cord, Low Smoke Zero Halogen (LSZH) Compound Outer Sheath.These structure cable suitable for 10Gigabyte Ethernet Applications and compatible with all known connection Systems,Ideal for high per formance workstation applications including voice/data systems, Digital video,Broadband and Voice over internet protocol etc.
| Available Packaging | 305m |
| Breaking strength | 400 N (max.) |
| Cable Category | Category 6 |
| Cable Construction | U/UTP |
| Overall Length (ft.) | 1000 |
| Overall Length (m) | 305 |
| Conductor Material | Copper |
| Conductor Gauge (AWG) | 23 |
| Sheath | LSZH |
| Insulation Diameter (mm) | 1.0 2± 0.03 |
| Number of Pairs | 4 |
| Cable Diameter(mm) | 6. 20 ± 0. 30 |
| Temperature Range | -20 °C up to + 60 °C |
| Bending radius | 4 x overall diameter (min.) |
| Color | Grey |
| Performance Level | Category 6 |
| Part Number | Description |
| APCZH-4-C6GY | Cat6 Unshielded (UTP) 4 Pair 23 AWG LSZH 305m Cable,Grey |
| Available Packaging | 305m |
| Breaking strength | 400 N (max.) |
| Cable Category | Category 6 |
| Cable Construction | U/UTP |
| Overall Length (ft.) | 1000 |
| Overall Length (m) | 305 |
| Conductor Material | Copper |
| Conductor Gauge (AWG) | 23 |
| Sheath | LSZH |
| Insulation Diameter (mm) | 1.0 2± 0.03 |
| Number of Pairs | 4 |
| Cable Diameter(mm) | 6. 20 ± 0. 30 |
| Temperature Range | -20 °C up to + 60 °C |
| Bending radius | 4 x overall diameter (min.) |
| Color | Grey |
| Performance Level | Category 6 |
| Part Number | Description |
| APCZH-4-C6GY | Cat6 Unshielded (UTP) 4 Pair 23 AWG LSZH 305m Cable,Grey |
