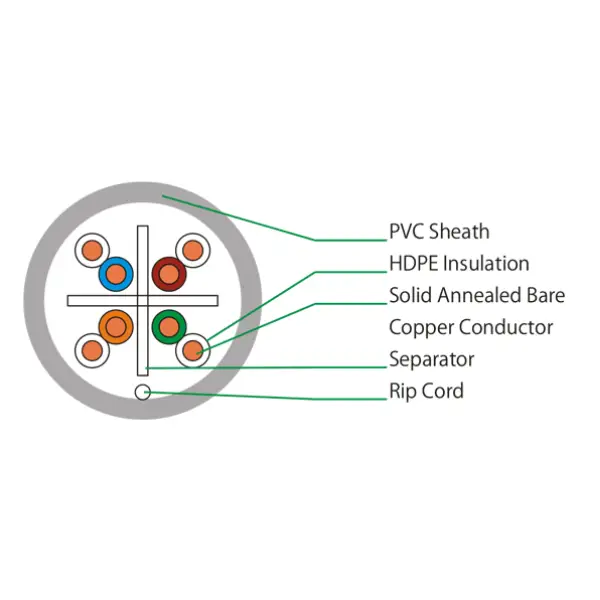

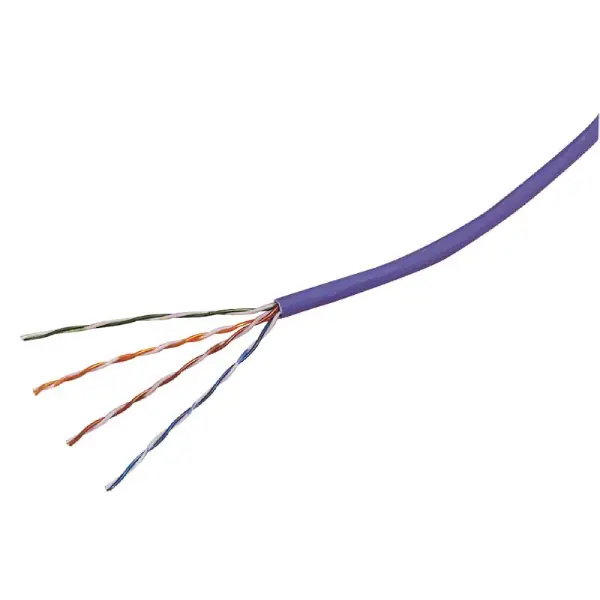

Cat 6 UTP Data Cable Consists of 4 Pair PE Insulated 23 AWG Solid Annealed Bare Copper Conductors, PE Cross Separator,rip cord and PVC outer Sheat. These structure cable suitable for 10Gig abyte Ethernet Applications and compatible with all known connection Systems, Ideal for high performance workstation applications including voice/data systems, Digital video, Broadb and and Voice over internet protocol etc.
| Product Type | Ethernet Cable |
| Performance Level | Category 6 |
| Cable Construction | U/UTP |
| Sheath | PVC |
| Conductor Material | Copper |
| Conductor Gauge (AWG) | 23 |
| Number of Pairs | 4 |
| Environment | Indoor |
| Insulation Diameter (mm) | 1.0 2± 0.03 |
| Resistance Properties | Flame Retardant |
| Available packaging ( m ) | 500 |
| RoHS Compliancy Status | Compliant |
| Temperature Range | -20 °C up to + 60 °C |
| Package Type | Pullout Box |
| Color | Violet |
| Cable Diameter | 6. 20 ± 0. 30 mm |
| Part Number | Description |
| APC-4-C6VT5 | Cat6 Unshielded (UTP) 4 Pair 23 AWG Solid PVC 500m Cable,Violet |
| Product Type | Ethernet Cable |
| Performance Level | Category 6 |
| Cable Construction | U/UTP |
| Sheath | PVC |
| Conductor Material | Copper |
| Conductor Gauge (AWG) | 23 |
| Number of Pairs | 4 |
| Environment | Indoor |
| Insulation Diameter (mm) | 1.0 2± 0.03 |
| Resistance Properties | Flame Retardant |
| Available packaging ( m ) | 500 |
| RoHS Compliancy Status | Compliant |
| Temperature Range | -20 °C up to + 60 °C |
| Package Type | Pullout Box |
| Color | Violet |
| Cable Diameter | 6. 20 ± 0. 30 mm |
| Part Number | Description |
| APC-4-C6VT5 | Cat6 Unshielded (UTP) 4 Pair 23 AWG Solid PVC 500m Cable,Violet |
