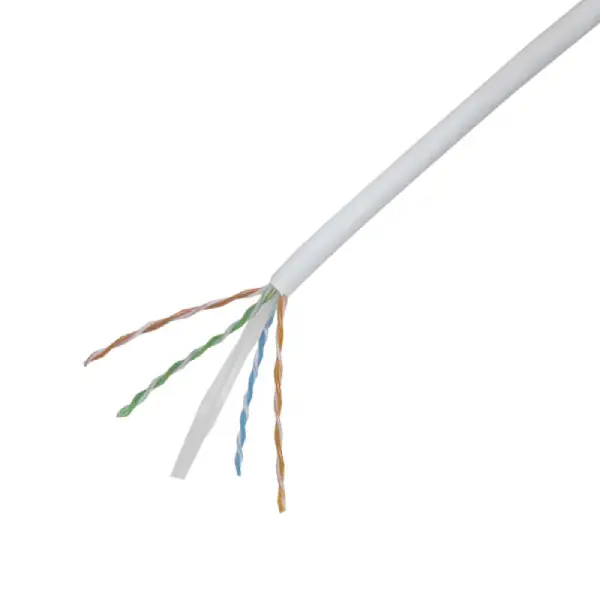

Cat 6 UTP Data Cable Consists of 4 Pair PE Insulated 23AWG Solid Annealed Bare Copper Conductors,PE Cross Separator Rip Cord, Low Smoke Zero Halogen (LSZH) Compound Outer Sheath.These structure cable suitable for 10Gigabyte Ethernet Applications and compatible with all known connection Systems,Ideal for high per formance workstation applications including voice/data systems, Digital video,Broadband and Voice over internet protocol etc.
| Product Type | Ethernet Cable |
| Performance Level | Category 6 |
| Cable Construction | U/UTP |
| Conductor Gauge (AWG) | 23 |
| Cable Diameter(mm) | 6.20 ± 0.30 |
| Number of Pairs | 4 |
| Insulation Diameter (mm) | 1.02± 0.03 |
| Outer Sheath | Low Smoke Zero Halogen ( LSZH ) |
| Conductor Material | Copper |
| Color | Grey |
| Available Packaging (m) | 500 |
| Breaking strength | 400 N (max.) |
| Temperature Range | -20 °C up to + 60 °C |
| RoHS Compliance | Compliant |
| Part Number | Description |
| APCZH-4-C6GY5 | Cat6 Unshielded (UTP) 4 Pair 23 AWG LSZH 500m Cable,Grey |
| Product Type | Ethernet Cable |
| Performance Level | Category 6 |
| Cable Construction | U/UTP |
| Conductor Gauge (AWG) | 23 |
| Cable Diameter(mm) | 6.20 ± 0.30 |
| Number of Pairs | 4 |
| Insulation Diameter (mm) | 1.02± 0.03 |
| Outer Sheath | Low Smoke Zero Halogen ( LSZH ) |
| Conductor Material | Copper |
| Color | Grey |
| Available Packaging (m) | 500 |
| Breaking strength | 400 N (max.) |
| Temperature Range | -20 °C up to + 60 °C |
| RoHS Compliance | Compliant |
| Part Number | Description |
| APCZH-4-C6GY5 | Cat6 Unshielded (UTP) 4 Pair 23 AWG LSZH 500m Cable,Grey |
