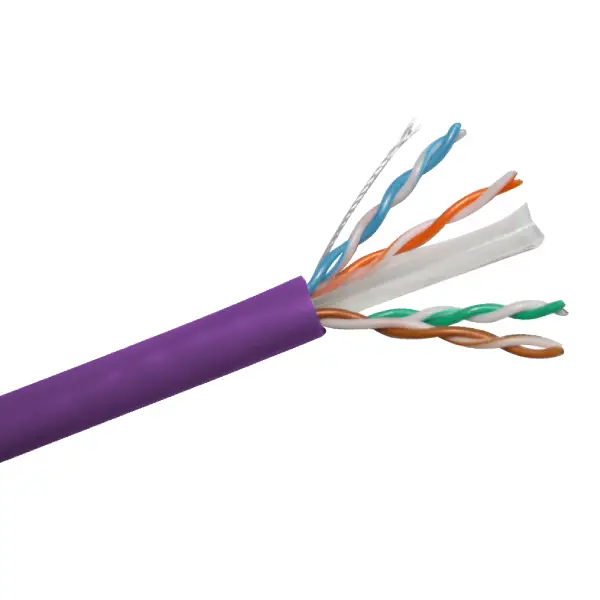

Cat 6 UTP Data Cable Consists of 4 Pair PE Insulated 23AWG Solid Annealed Bare Copper Conductors,PE Cross Separator Rip Cord, Low Smoke Zero Halogen (LSZH) Compound Outer Sheath.These structure cable suitable for 10Gigabyte Ethernet Applications and co mpatible with all known connection Systems , Ideal for high per formance workstation applications including voice/data systems, Digital video,Broadband and Voice over internet protocol etc.
| Cable Category | Category 6 |
| Cable Construction | U/UTP |
| Overall Length (m) | 305 |
| MOQ | 12200 |
| Overall Length (ft.) | 1000 |
| Performance Level | Category 6 |
| Color | Violet |
| Bending radius | 4 x overall diameter (min.) |
| Temperature Range | -20 °C up to + 60 °C |
| Cable Diameter(mm) | 6. 20 ± 0. 30 |
| Available Packaging | 305m |
| Number of Pairs | 4 |
| Insulation Diameter (mm) | 1.0 2± 0.03 |
| Conductor Gauge (AWG) | 23 |
| Sheath | LSZH |
| Conductor Material | Copper |
| Breaking strength | 400 N (max.) |
| Part Number | Description |
| APCZH-4-C6VT | Cat6 Unshielded (UTP) 4 Pair 23 AWG LSZH 305m Cable,Violet |
| Cable Category | Category 6 |
| Cable Construction | U/UTP |
| Overall Length (m) | 305 |
| MOQ | 12200 |
| Overall Length (ft.) | 1000 |
| Performance Level | Category 6 |
| Color | Violet |
| Bending radius | 4 x overall diameter (min.) |
| Temperature Range | -20 °C up to + 60 °C |
| Cable Diameter(mm) | 6. 20 ± 0. 30 |
| Available Packaging | 305m |
| Number of Pairs | 4 |
| Insulation Diameter (mm) | 1.0 2± 0.03 |
| Conductor Gauge (AWG) | 23 |
| Sheath | LSZH |
| Conductor Material | Copper |
| Breaking strength | 400 N (max.) |
| Part Number | Description |
| APCZH-4-C6VT | Cat6 Unshielded (UTP) 4 Pair 23 AWG LSZH 305m Cable,Violet |
