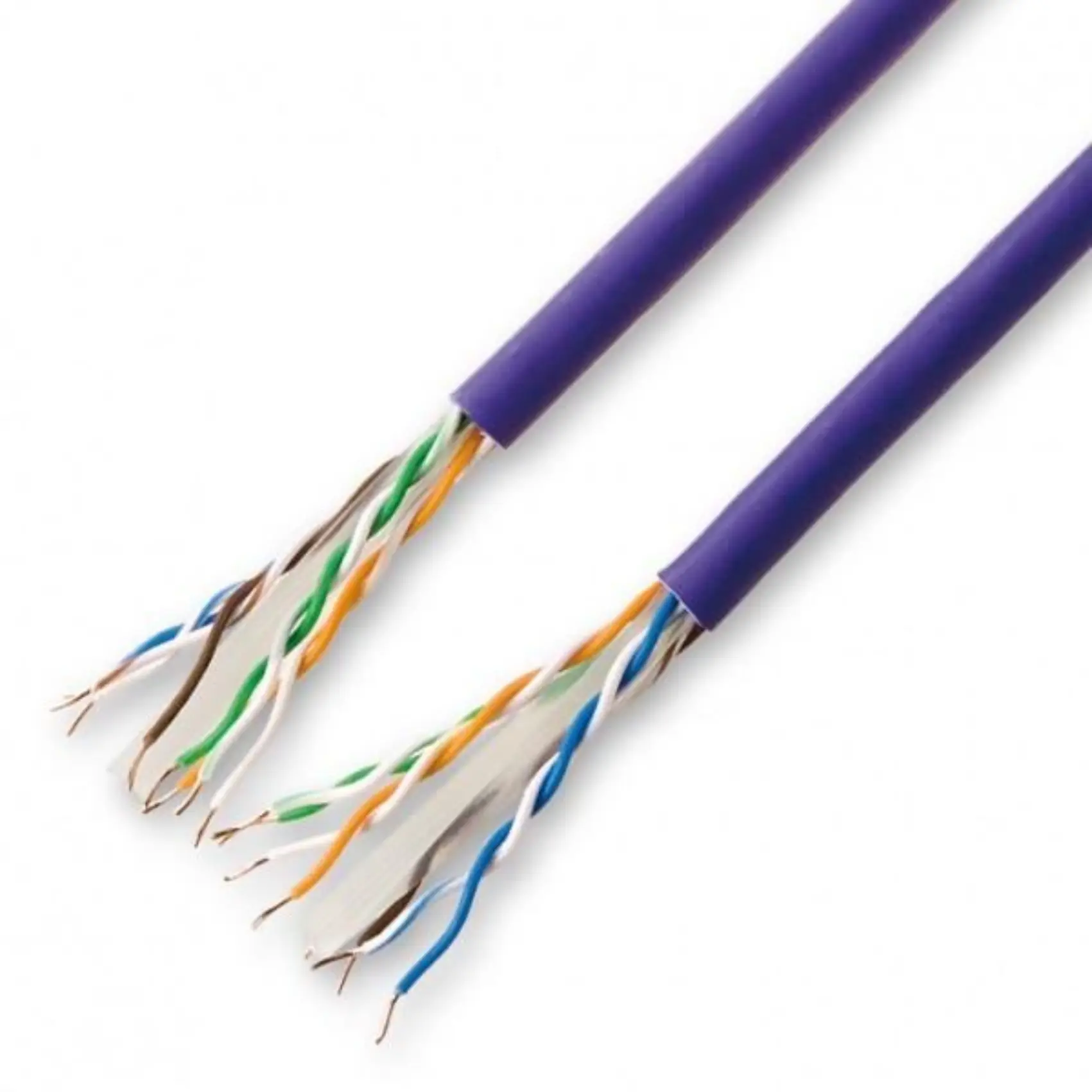

Cat 6 UTP Data Cable Consists of 4 Pair PE Insulated 23 AWG Solid Annealed Bare Copper Conductors, PE Cross Separator,rip cord and PVC outer Sheat. These structure cable suitable for 10Gig abyte Ethernet Applications and compatible with all known connection Systems, Ideal for high performance workstation applications including voice/data systems, Digital video, Broadb and and Voice over internet protocol etc.
| Bending radius(min) | 4 x overall diameter |
| Color | Violet |
| Package Type | Pullout Box |
| Resistance Properties | Flame Retardant |
| Part Features | Third party tested, Tested beyond the standards |
| Temperature Range | -20 °C up to + 60 °C |
| Insulation Diameter (mm) | 1.0 2 ± 0.03 |
| Environment | Indoor |
| Number of Pairs | 4 |
| Conductor Gauge (AWG) | 23 |
| Conductor Material | Copper |
| Overall Length (m) | 305 |
| Cable Construction | U/UTP |
| Cable Category | Category 6 |
| Sheath | PVC |
| RoHS Compliancy Status | Compliant |
| Overall Length (ft.) | 1000 |
| Performance Level | Category 6 |
| Available packaging | 305m |
| Breaking strength(max) | 400 N |
| Part Number | Description |
| APC-4-C6VT | Cat6 Unshielded (UTP) 4 Pair 23 AWG Solid PVC 305m Cable,Violet |
| Bending radius(min) | 4 x overall diameter |
| Color | Violet |
| Package Type | Pullout Box |
| Resistance Properties | Flame Retardant |
| Part Features | Third party tested, Tested beyond the standards |
| Temperature Range | -20 °C up to + 60 °C |
| Insulation Diameter (mm) | 1.0 2 ± 0.03 |
| Environment | Indoor |
| Number of Pairs | 4 |
| Conductor Gauge (AWG) | 23 |
| Conductor Material | Copper |
| Overall Length (m) | 305 |
| Cable Construction | U/UTP |
| Cable Category | Category 6 |
| Sheath | PVC |
| RoHS Compliancy Status | Compliant |
| Overall Length (ft.) | 1000 |
| Performance Level | Category 6 |
| Available packaging | 305m |
| Breaking strength(max) | 400 N |
| Part Number | Description |
| APC-4-C6VT | Cat6 Unshielded (UTP) 4 Pair 23 AWG Solid PVC 305m Cable,Violet |
