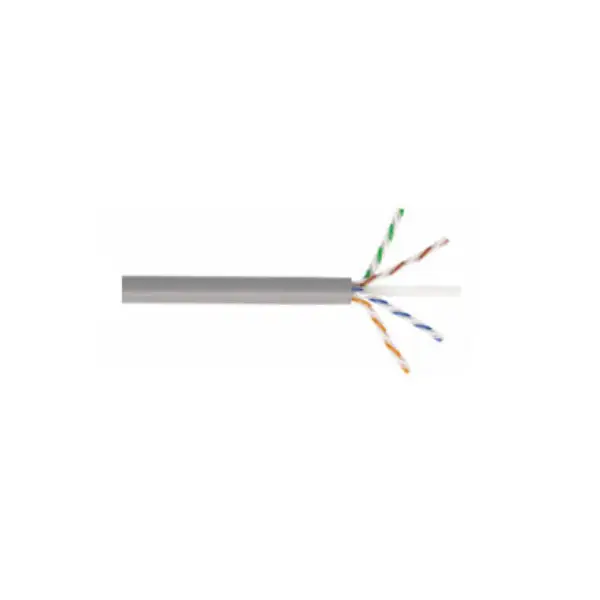

Cat 6 UTP Data Cable Consists of 4 Pair PE Insulated 23 AWG Solid Annealed Bare Copper Conductors, PE Cross Sep arator,rip cor d and PVC outer Sheat.These structure cable suitable for 10Gig abyte Ethernet Applications and compatible with all known connection Systems, Ideal for high performance workstation applications including voice/data systems, Digital video, Broadb and and Voice over internet protocol etc.
| Bending radius(min) | 4 x overall diameter |
| Part Features | Third party tested, Tested beyond the standards |
| Cable Category | Category 6 |
| Overall Length (ft.) | 1000 |
| Cable Construction | U/UTP |
| Overall Length (m) | 305 |
| Sheath | PVC |
| Conductor Material | Copper |
| Conductor Material | Copper |
| Number of Pairs | 4 |
| Conductor Gauge (AWG) | 23 |
| Insulation Diameter (mm) | 1.0 2± 0.03 |
| Temperature Range | -20 °C up to + 60 °C |
| Environment | Indoor |
| Package Type | Pullout Box |
| Color | Grey |
| Available packaging | 305m |
| Resistance Properties | Flame Retardant |
| Breaking strength(max) | 400 N |
| MOQ | 12200 |
| Part Number | Description |
| APC-4-C6GY | Cat6 Unshielded (UTP) 4 Pair 23 AWG Solid PVC 305m Cable,Grey |
| Bending radius(min) | 4 x overall diameter |
| Part Features | Third party tested, Tested beyond the standards |
| Cable Category | Category 6 |
| Overall Length (ft.) | 1000 |
| Cable Construction | U/UTP |
| Overall Length (m) | 305 |
| Sheath | PVC |
| Conductor Material | Copper |
| Conductor Material | Copper |
| Number of Pairs | 4 |
| Conductor Gauge (AWG) | 23 |
| Insulation Diameter (mm) | 1.0 2± 0.03 |
| Temperature Range | -20 °C up to + 60 °C |
| Environment | Indoor |
| Package Type | Pullout Box |
| Color | Grey |
| Available packaging | 305m |
| Resistance Properties | Flame Retardant |
| Breaking strength(max) | 400 N |
| MOQ | 12200 |
| Part Number | Description |
| APC-4-C6GY | Cat6 Unshielded (UTP) 4 Pair 23 AWG Solid PVC 305m Cable,Grey |
