APOF-IDF-H01SCL
thumbnail
thumbnail

APOF-IDF-H01SCL

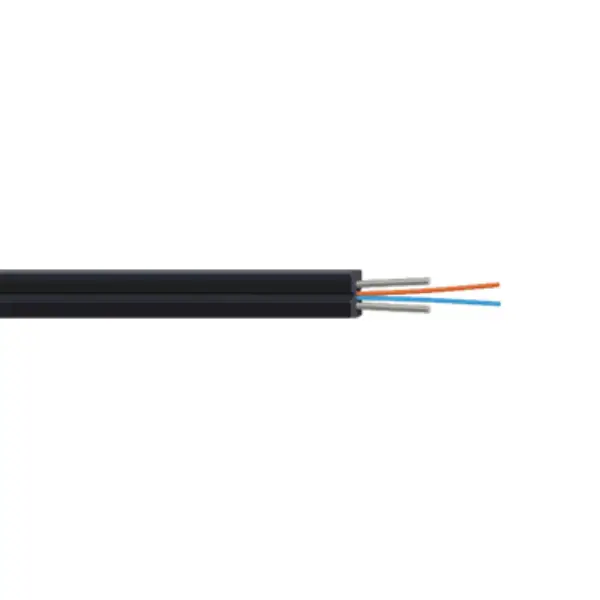

FTTH INDOOR 1 CORE DROP CABLE,SM/MM

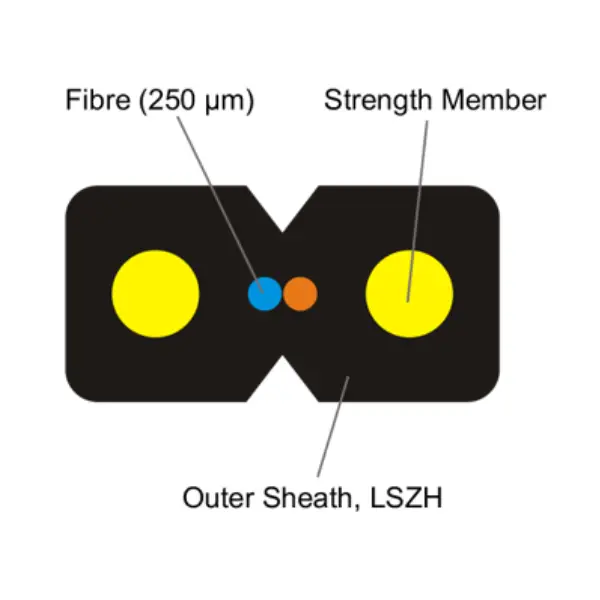

  • Up to 2 enhance low water peak single mode fibres in full compliance with ITU-T-G.652.D (also available with G657 SM Fibre and OM1 / OM2 / OM3 & OM4 MM Fibre)
  • FRP / ARP rod as strength member
  • Steel wire as integrated messenger wire
  • LSZH shealth

Application

  • Drop Cable suitable for aerial application.

*All images are indicative

search-icon Find a Distributor HOW TO BUY

Product TypeFiber Cable
Performance LevelSM/MM
Fiber Count1 Fiber
Diameter (mm) Nominal(2.0±0.2)×(3.0±0.2)
Weight (Kg./Km) Nominal10
Tensile strength (N) Installation40
Tensile strength (N) Operating30
Bending Radius Temporary30D
Bending Radius Permanent50D
Installation Temperature-20° to +70° C
Operating Temperature-40° to +70° C
Color CodingBlue
RoHSCompliant

Part NumberDescription
APOF-IDF-H01SCLFTTH INDOOR 1 CORE DROP CABLE,SINGLEMODE
APOF-IDF-H01MCLFTTH INDOOR 1 CORE DROP CABLE,MULTIMODE OM1/OM2
APOF-IDF-H01M3CLFTTH INDOOR 1 CORE DROP CABLE,MULTIMODE OM3
APOF-IDF-H01M4CLFTTH INDOOR 1 CORE DROP CABLE,MULTIMODE OM4
