APOF-DF-H01SCL
thumbnail
thumbnail

APOF-DF-H01SCL

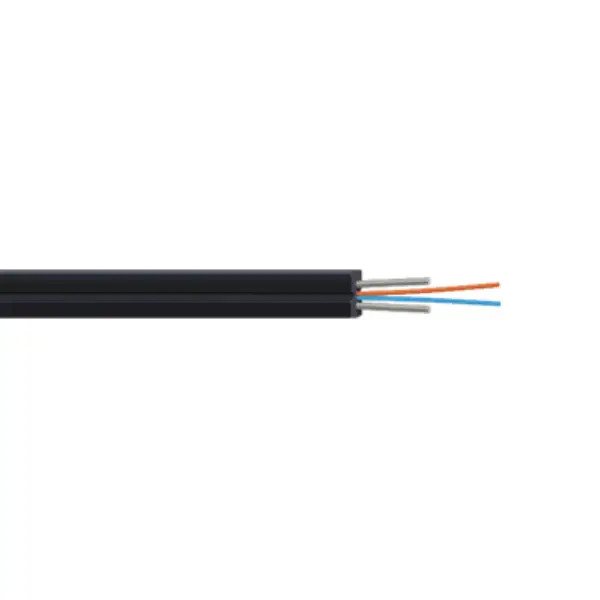

FTTH 1 CORE DROP CABLE,SM/MM

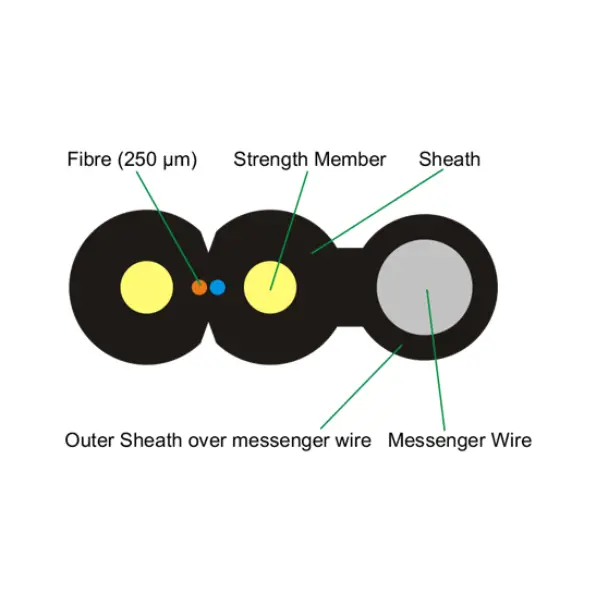

  • Up to 2 enhance low water peak single mode fibres in full compliance with ITU-T-G.652.D (also available with G657 SM Fibre and OM1 / OM2 / OM3 & OM4 MM Fibre)
  • FRP / ARP rod as strength member
  • Steel wire as integrated messenger wire
  • LSZH shealth

Application

  • Drop Cable suitable for aerial application.

search-icon Find a Distributor HOW TO BUY

Product TypeFiber Cable
Performance LevelSM/MM
Fiber Count1 Fiber
Diameter (mm) Nominal(2.0±0.2)×(3.0±0.2)
Weight (Kg./Km) Nominal10
Tensile strength (N) Installation130
Tensile strength (N) Operating50
Bending Radius Temporary30
Bending Radius Permanent50
Installation Temperature-20° to +70° C
Operating Temperature-40° to +70° C
Color CodingBlue*
RoHSCompliant

Part NumberDescription
APOF-DF-H01SCLFTTH 1 CORE DROP CABLE, SINGLEMODE
APOF-DF-H01MCLFTTH 1 CORE DROP CABLE, MULTIMODE OM1/OM2
APOF-DF-H01M3CLFTTH 1 CORE DROP CABLE, MULTIMODE OM3
APOF-DF-H01M4CLFTTH 1 CORE DROP CABLE, MULTIMODE OM4
