Application
| Product Type | Fiber Cable |
| Performance Level | SM/MM |
| Fiber Count | 2 Fiber |
| Diameter (mm) Nominal | 2.0 X 5.0 |
| Weight (Kg./Km) Nominal | 20 |
| Tensile strength (N) Installation | 130 |
| Tensile strength (N) Operating | 50 |
| Bending Radius Temporary | 30 |
| Bending Radius Permanent | 50 |
| Installation Temperature | -20° to +70° C |
| Operating Temperature | -40° to +70° C |
| Color Coding | Blue* Orange* |
| RoHS | Compliant |
| Part Number | Description |

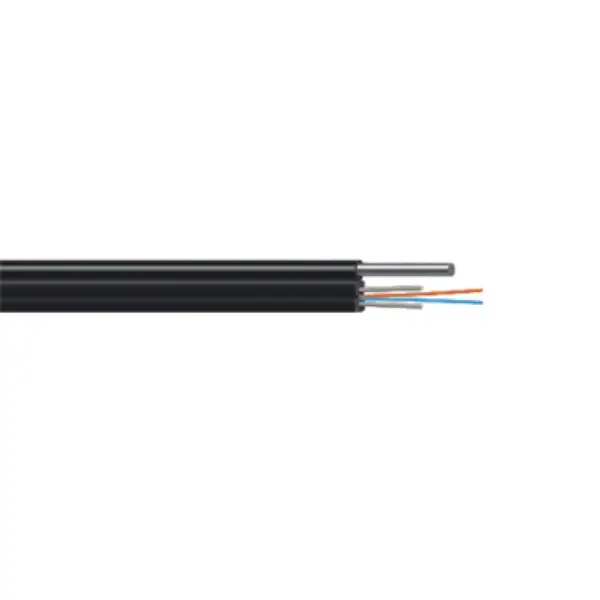

| APOF-DF-H02SCL | FTTH 2 CORE DROP CABLE,Singlemode |
| APOF-DF-H02MCL | FTTH 2 CORE DROP CABLE,Multimode OM1/OM2 |
| APOF-DF-H02M3CL | FTTH 2 CORE DROP CABLE,Multimode OM3 |
| APOF-DF-H02M4CL | FTTH 2 CORE DROP CABLE,Multimode OM4 |
| Product Type | Fiber Cable |
| Performance Level | SM/MM |
| Fiber Count | 2 Fiber |
| Diameter (mm) Nominal | 2.0 X 5.0 |
| Weight (Kg./Km) Nominal | 20 |
| Tensile strength (N) Installation | 130 |
| Tensile strength (N) Operating | 50 |
| Bending Radius Temporary | 30 |
| Bending Radius Permanent | 50 |
| Installation Temperature | -20° to +70° C |
| Operating Temperature | -40° to +70° C |
| Color Coding | Blue* Orange* |
| RoHS | Compliant |
| Part Number | Description |
| APOF-DF-H02SCL | FTTH 2 CORE DROP CABLE,Singlemode |
| APOF-DF-H02MCL | FTTH 2 CORE DROP CABLE,Multimode OM1/OM2 |
| APOF-DF-H02M3CL | FTTH 2 CORE DROP CABLE,Multimode OM3 |
| APOF-DF-H02M4CL | FTTH 2 CORE DROP CABLE,Multimode OM4 |
