APOF-AD-20ST0SA

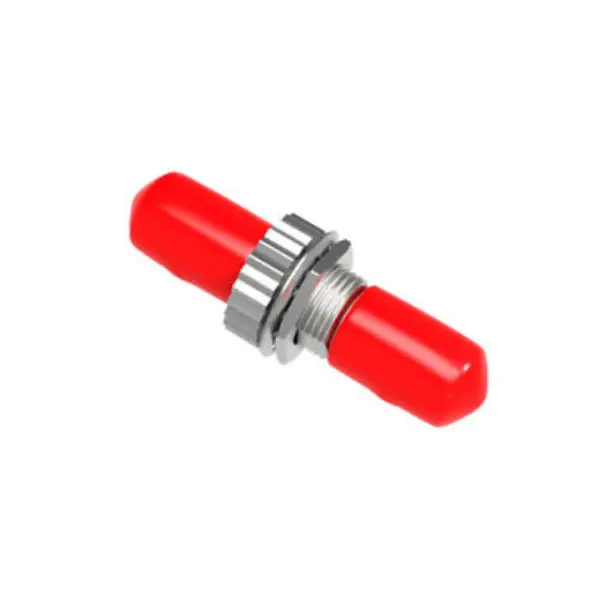

Apsys Networks ST/UPC to ST/UPC Simplex Single Mode Fiber Optic Adapter, Metal

FIBER OPTIC ADAPTER ST adapter has a metal housing an d either a precision zirconia or a rugged phosphor bronze sleeve.Zirconiasleeve enables stable connection and thus enhances performance,and is ideal for single mode applications.Phosphor bronze sleeve provides durability,and is ideal for multimode applications.We Manufacture fiber optic ST adapters,including the single mode and multimode types.These ST fiber adapters are simplex style and duplex style,most are with zirconia sleeves,optional bronze sleeve adaptors are available for multimode.

Product TypeFiber Adapter
Performance LevelSinglemode
Connector 1 typeST Simplex
Connector 2 typeST Simplex
Polish TypeUPC
Insertion Loss<=0.2db
Durability0.2db
Operating Temperature-25°C ~ 70°C
Storage Temperature-25°C ~ 70°C
Mounting typeNo flange
Sleeve MaterialCeramic
RoHSCompliant

Part NumberDescription
APOF-AD-20ST0SAApsys Networks ST/UPC to ST/UPC Simplex Single Mode Fiber Optic Adapter, Metal

Specifications

Product TypeFiber Adapter
Performance LevelSinglemode
Connector 1 typeST Simplex
Connector 2 typeST Simplex
Polish TypeUPC
Insertion Loss<=0.2db
Durability0.2db
Operating Temperature-25°C ~ 70°C
Storage Temperature-25°C ~ 70°C
Mounting typeNo flange
Sleeve MaterialCeramic
RoHSCompliant

Ordering Information

Part NumberDescription
APOF-AD-20ST0SAApsys Networks ST/UPC to ST/UPC Simplex Single Mode Fiber Optic Adapter, Metal
