APOF-AD-1093A

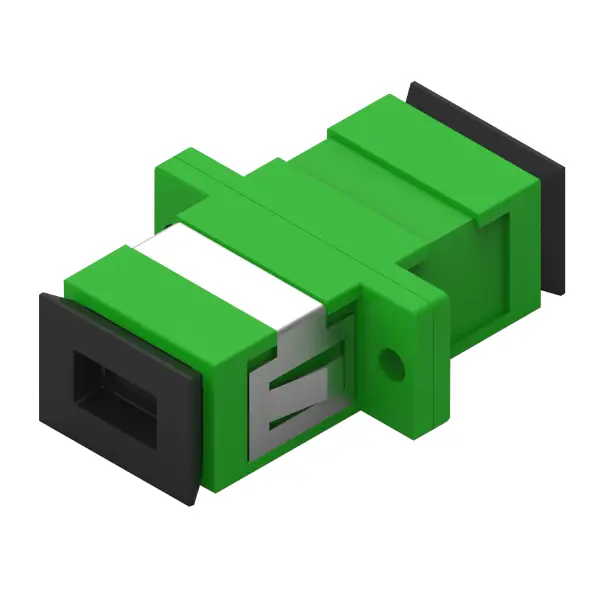

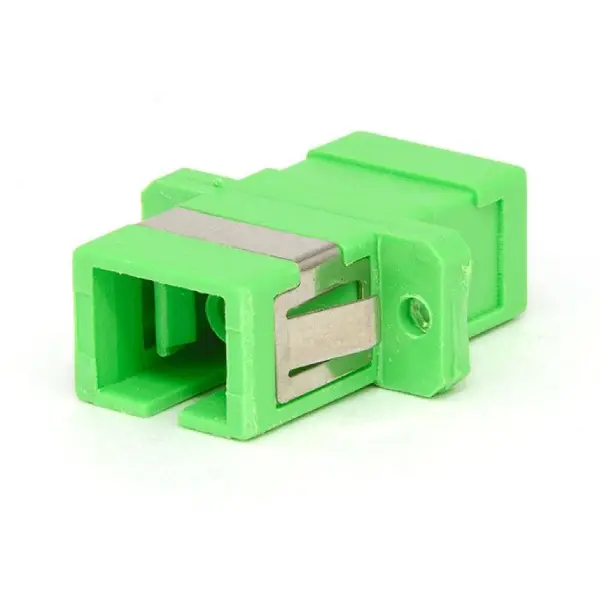

Apsys Networks SC/APC to SC/APC Simplex Single Mode Fiber Optic Adapter, Plastic

FIBER OPTIC ADAPTER Typical SC fiber optic adapters are with plastic housing and for single mode SC UPC it is blue color, single mode SC APC it is green color, multimode SC UPC is beige color. We also supply the metal housing SC fiber optic adapters. Most of these adapters come with ceramic sleeves, while there are bronze sleeve SC adapters which are generally multimode types. Various kinds of SC adaptors, single mode & multimode,simplex & duplex,PC & APC,Plastic body & metal body with fange & without fange.
*All images are indicative

Product TypeFiber Adapter
Performance LevelSinglemode
Connector 1 typeSC Simplex
Connector 2 typeSC Simplex
Polish TypeAPC
Insertion Loss<=0.2dB
Durability0.2dB
Operating Temperature-40°c~85°c
Storage Temperature-40°c~85°c
Mounting TypeFlange type
ColorGreen
RoHSCompliant

Part NumberDescription
APOF-AD-1094AApsys Networks SC/APC to SC/APC Simplex Single Mode Fiber Optic Adapter, Plastic

Specifications

Product TypeFiber Adapter
Performance LevelSinglemode
Connector 1 typeSC Simplex
Connector 2 typeSC Simplex
Polish TypeAPC
Insertion Loss<=0.2dB
Durability0.2dB
Operating Temperature-40°c~85°c
Storage Temperature-40°c~85°c
Mounting TypeFlange type
ColorGreen
RoHSCompliant

Ordering Information

Part NumberDescription
APOF-AD-1094AApsys Networks SC/APC to SC/APC Simplex Single Mode Fiber Optic Adapter, Plastic
