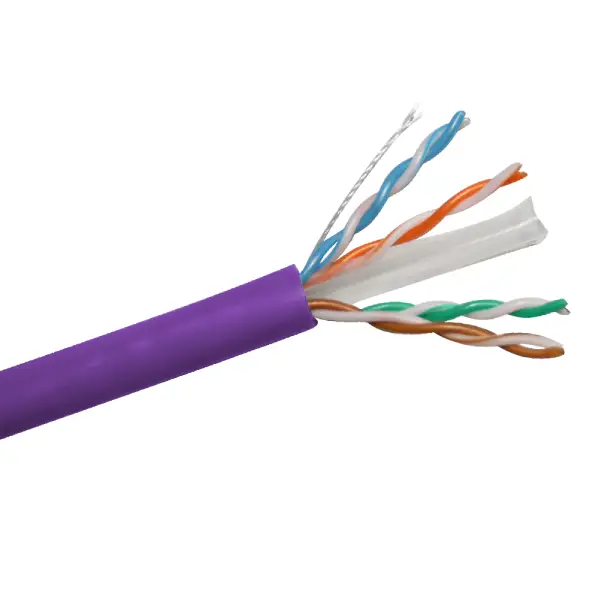

23 AWG bare copper wire Insulated with Polyethylene. Two insulated conductors twisted together to form a pair and four such pairs laid up with cross filler to form the basic unit, Rip Cord, Jacketed with Flame-Retardant LSZH Compound.
Features
| Product Type | Ethernet Cable |
| Performance Level | Category 6a |
| Cable Construction | UTP |
| Conductor Gauge (AWG) | 23 |
| Cable Diameter(mm) | 7.1 ± 0.50 mm |
| Number of Pairs | 4 |
| Insulation Diameter (mm) | 1.08 ± 0.05 |
| Outer Sheath | LSZH |
| Conductor Material | Solid bare copper |
| Color | Violet |
| Available Packaging (m) | 500 |
| Breaking strength | 400 N (max.) |
| Installation Temperature range | 0°C to +50°C |
| Operating Temperature range | -20°C to +60°C |
| RoHS Compliance | Compliant |
| Part Number | Description |
| APCZH-4-C6A5VU | Cat6A Unshielded (UTP) 4 Pair 23 AWG LSZH 500m Cable,Violet |
| Product Type | Ethernet Cable |
| Performance Level | Category 6a |
| Cable Construction | UTP |
| Conductor Gauge (AWG) | 23 |
| Cable Diameter(mm) | 7.1 ± 0.50 mm |
| Number of Pairs | 4 |
| Insulation Diameter (mm) | 1.08 ± 0.05 |
| Outer Sheath | LSZH |
| Conductor Material | Solid bare copper |
| Color | Violet |
| Available Packaging (m) | 500 |
| Breaking strength | 400 N (max.) |
| Installation Temperature range | 0°C to +50°C |
| Operating Temperature range | -20°C to +60°C |
| RoHS Compliance | Compliant |
| Part Number | Description |
| APCZH-4-C6A5VU | Cat6A Unshielded (UTP) 4 Pair 23 AWG LSZH 500m Cable,Violet |
