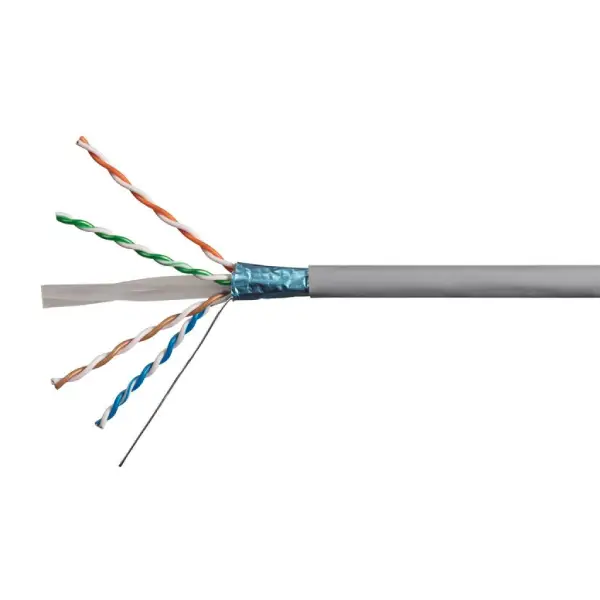

The cable Structured by 23AWG Solid Annealed Bare Copper Conductor, Foam polyethylene Insulated twisted Pair, 4Pair Individually Screened by aluminum foil (Mylar tape), ATC Drain wire, Overall Mylar tape then Outer Jacket.
Features
| Product Type | Ethernet Cable |
| Performance Level | Category 6a |
| Cable Construction | F/FTP |
| Conductor Gauge (AWG) | 23 |
| Cable Diameter(mm) | 7.8 ± 0.50 mm |
| Number of Pairs | 4 |
| Insulation Diameter (mm) | 1.35 mm (nom) |
| Outer Sheath | PVC |
| Conductor Material | Solid Annealed Bare Copper |
| Color | Grey |
| Available Packaging (m) | 305 |
| Cable Performance | up to 500 MHz |
| Installation Temperature range | 0°C to +50°C |
| Operating Temperature | -20°C to +60°C |
| Bending Radius | Min 80 mm |
| Pulling Force | Max 100 N |
| RoHS Compliance | Compliant |
| Part Number | Description |
| APC-4-C6AFFG | Cat6A (F/FTP) 4 Pair 23 AWG PVC 305m Cable,Grey |
| Product Type | Ethernet Cable |
| Performance Level | Category 6a |
| Cable Construction | F/FTP |
| Conductor Gauge (AWG) | 23 |
| Cable Diameter(mm) | 7.8 ± 0.50 mm |
| Number of Pairs | 4 |
| Insulation Diameter (mm) | 1.35 mm (nom) |
| Outer Sheath | PVC |
| Conductor Material | Solid Annealed Bare Copper |
| Color | Grey |
| Available Packaging (m) | 305 |
| Cable Performance | up to 500 MHz |
| Installation Temperature range | 0°C to +50°C |
| Operating Temperature | -20°C to +60°C |
| Bending Radius | Min 80 mm |
| Pulling Force | Max 100 N |
| RoHS Compliance | Compliant |
| Part Number | Description |
| APC-4-C6AFFG | Cat6A (F/FTP) 4 Pair 23 AWG PVC 305m Cable,Grey |
