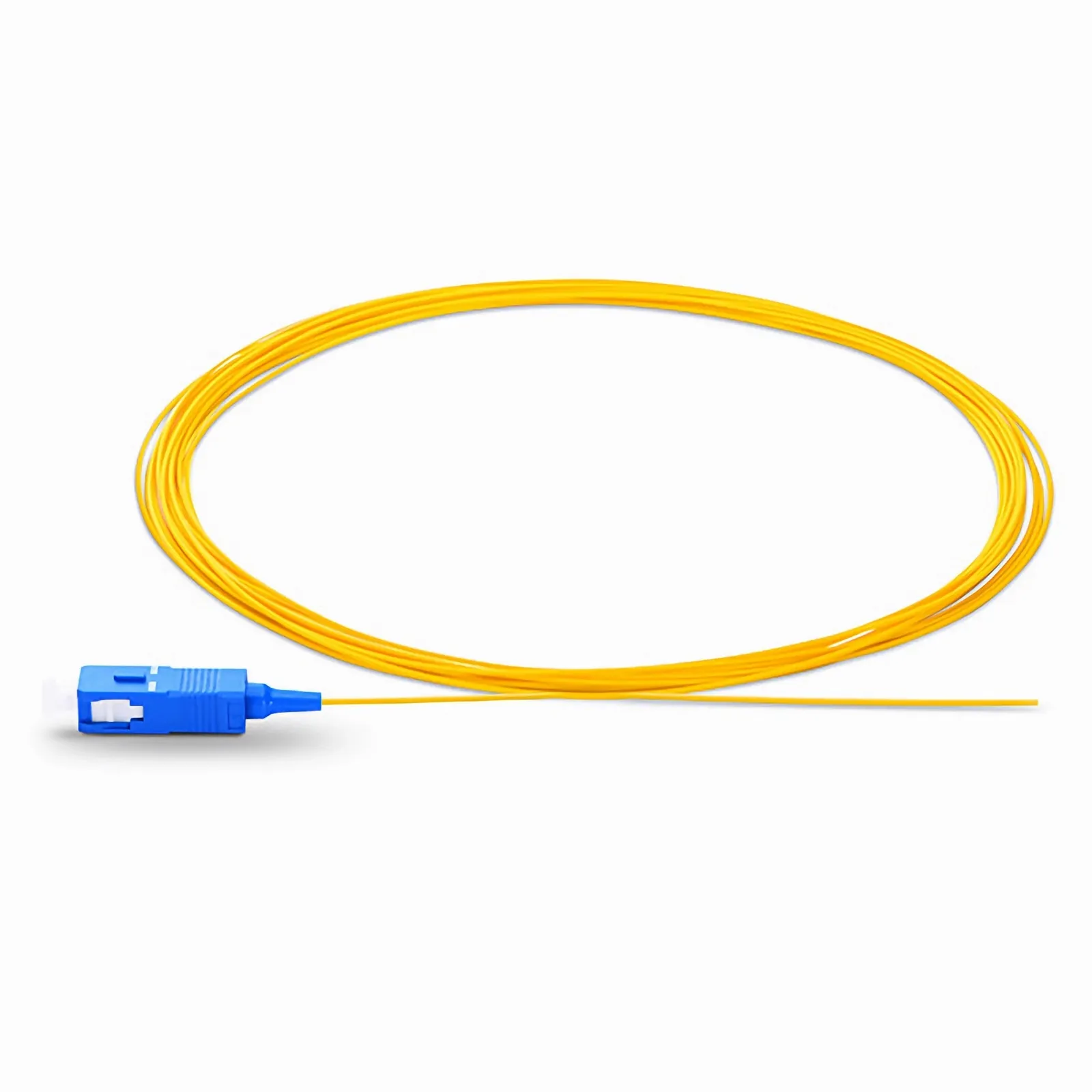

FIBER OPTIC PIGTAILS
Fiber optic pigtails assemblies are utilised in terminating fiber optic cables via fusion or mechanical splicing. High-quality pigtails combined with correct fusion splicing practices offer the best performance possible for fiber optic cable terminations
*All images are indicative
| Product Type | Fiber pigtail |
| Fiber Type | OS2 |
| Number of Fibers | 1 |
| Connector Type | SC Simplex |
| Polish Type | UPC |
| Flammability Rating | Low Smoke Zero Halogen (LSZH) |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Maximum Connector Insertion Loss (dB) | 50 |
| Cable colour | Yellow |
| Overall Length (ft.) | 4.92 |
| Overall Length (m) | 1.5 |
| Other Length (m) | 1 & 2 |
| Operation Temperature | 40°C to +85°C |
| Storage Temperature | 50°C to +85°C |
| Standards Met | Meets or exceeds ISO/IEC 11801 . EN50173 -1,ANSI TIA/EIA 568B. |
| CE | Compliant |
| Part Number | Description |
| APOF-PT-109911 | SC UPC Simplex OS2 Singlemode, LSZH 1m Fiber Optic Pigtail, Yellow |
| APOF-PT-109915 | SC UPC Simplex OS2 Singlemode, LSZH 1.5m Fiber Optic Pigtail, Yellow |
| APOF-PT-109920 | SC UPC Simplex OS2 Singlemode, LSZH 2m Fiber Optic Pigtail, Yellow |
| Product Type | Fiber pigtail |
| Fiber Type | OS2 |
| Number of Fibers | 1 |
| Connector Type | SC Simplex |
| Polish Type | UPC |
| Flammability Rating | Low Smoke Zero Halogen (LSZH) |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Maximum Connector Insertion Loss (dB) | 50 |
| Cable colour | Yellow |
| Overall Length (ft.) | 4.92 |
| Overall Length (m) | 1.5 |
| Other Length (m) | 1 & 2 |
| Operation Temperature | 40°C to +85°C |
| Storage Temperature | 50°C to +85°C |
| Standards Met | Meets or exceeds ISO/IEC 11801 . EN50173 -1,ANSI TIA/EIA 568B. |
| CE | Compliant |
| Part Number | Description |
| APOF-PT-109911 | SC UPC Simplex OS2 Singlemode, LSZH 1m Fiber Optic Pigtail, Yellow |
| APOF-PT-109915 | SC UPC Simplex OS2 Singlemode, LSZH 1.5m Fiber Optic Pigtail, Yellow |
| APOF-PT-109920 | SC UPC Simplex OS2 Singlemode, LSZH 2m Fiber Optic Pigtail, Yellow |
