APPDU-06UKPB19
thumbnail

APPDU-06UKPB19

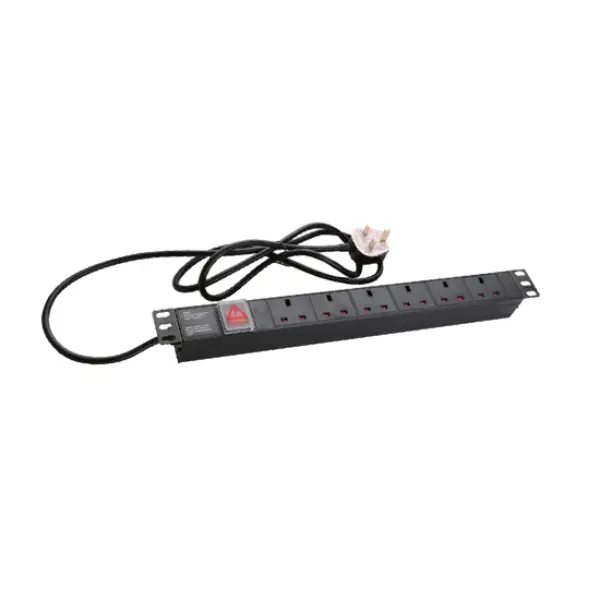

1U, 6 Way Power Distribution Unit, UK type,Horizontal, with main switch 2m cord,Uk type plug

  • 19” UK type PDUs are horizontal and vertical installation are optional,output available are 4 to 8way
  • Over 19”UK type PDUs are vertical installation ,output available are more than 8way
  • Height 1U and 1.5U are optional
  • Cable length longer than 2M,more than 3×1.0mm2
  • Kinds of control function and protection function are optional

search-icon Find a Distributor HOW TO BUY

Product TypePower Distribution Unit
SocketBS1363 13A(90°)
Rated input voltage250VAC 50/60Hz
Type of plugBS1363 13A
Output6 Way
Max input current13A
Max output current13A
Max output power3.5KW
ProtectionNone
Mounting methodHorizontal Installation
StandardsCE,RoHS
Cable length2M,3M,5M

Part NumberDescription
APPDU-06UKPB191U, 6 Way Power Distribution Unit, UK type,Horizontal, with main switch 2m cord,Uk type plug
APPDU-06UKPB19-31U, 6 Way Power Distribution Unit, UK type,Horizontal, with main switch 3m cord,Uk type plug
APPDU-06UKPB19-51U, 6 Way Power Distribution Unit, UK type,Horizontal, with main switch 5m cord,Uk type plug

Related Products

feathered products
APPDU-15UKPB19 UK Standard
Apsys Network
Detail
feathered products
APPDU-12UKPB19 UK Standard
Apsys Network
Detail
feathered products
APPDU-10UKPB19 UK Standard
Apsys Network
Detail
feathered products
APPDU-08UKPB19 UK Standard
Apsys Network
Detail

Specifications

Product TypePower Distribution Unit
SocketBS1363 13A(90°)
Rated input voltage250VAC 50/60Hz
Type of plugBS1363 13A
Output6 Way
Max input current13A
Max output current13A
Max output power3.5KW
ProtectionNone
Mounting methodHorizontal Installation
StandardsCE,RoHS
Cable length2M,3M,5M

Ordering Information

Part NumberDescription
APPDU-06UKPB191U, 6 Way Power Distribution Unit, UK type,Horizontal, with main switch 2m cord,Uk type plug
APPDU-06UKPB19-31U, 6 Way Power Distribution Unit, UK type,Horizontal, with main switch 3m cord,Uk type plug
APPDU-06UKPB19-51U, 6 Way Power Distribution Unit, UK type,Horizontal, with main switch 5m cord,Uk type plug
