APPDU-06AUPB19
thumbnail

APPDU-06AUPB19

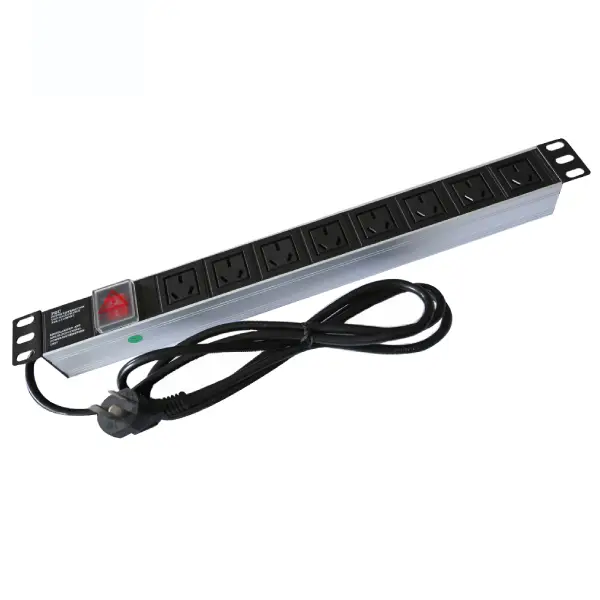

1U, 06 Way Power Distribution Unit, Australian type,Horizontal, with main switch 2m cord,AS/NZS3112 type plug

  • 19” Australia type PDUs are horizontal and vertical installation are optional,output available are 4 to 10way
  • Over 19” Australia type PDUs are vertical installation ,output available are more than 10way
  • Height 1U and 1.5U are optional
  • Cable length longer than 2M,more than 3×1.0mm2
  • Kinds of control function and protection function are optional

search-icon Find a Distributor HOW TO BUY

Product TypePower Distribution Unit
SocketAS/NZS3112
Rated input voltage250VAC 50/60Hz
Type of plugAS/NZS3112
Output6 Way
Max input current15A
Max output current15A
ProtectionNone
Mounting methodHorizontal Installation
StandardsCE,RoHS
Cable length2M,3M,5M

Part NumberDescription
APPDU-06AUPB191U, 06 Way Power Distribution Unit, Australian type,Horizontal, with main switch 2m cord,AS/NZS3112 type plug
APPDU-06AUPB19-031U, 06 Way Power Distribution Unit, Australian type,Horizontal, with main switch 3m cord,AS/NZS3112 type plug
APPDU-06AUPB19-051U, 06 Way Power Distribution Unit, Australian type,Horizontal, with main switch 5m cord,AS/NZS3112 type plug

Related Products

feathered products
APPDU-15AUPB19 Australian Standard
Apsys Network
Detail
feathered products
APPDU-12AUPB19 Australian Standard
Apsys Network
Detail
feathered products
APPDU-10AUPB19 Australian Standard
Apsys Network
Detail
feathered products
APPDU-08AUPB19 Australian Standard
Apsys Network
Detail

Specifications

Product TypePower Distribution Unit
SocketAS/NZS3112
Rated input voltage250VAC 50/60Hz
Type of plugAS/NZS3112
Output6 Way
Max input current15A
Max output current15A
ProtectionNone
Mounting methodHorizontal Installation
StandardsCE,RoHS
Cable length2M,3M,5M

Ordering Information

Part NumberDescription
APPDU-06AUPB191U, 06 Way Power Distribution Unit, Australian type,Horizontal, with main switch 2m cord,AS/NZS3112 type plug
APPDU-06AUPB19-031U, 06 Way Power Distribution Unit, Australian type,Horizontal, with main switch 3m cord,AS/NZS3112 type plug
APPDU-06AUPB19-051U, 06 Way Power Distribution Unit, Australian type,Horizontal, with main switch 5m cord,AS/NZS3112 type plug
