APPC-1GY-U6A

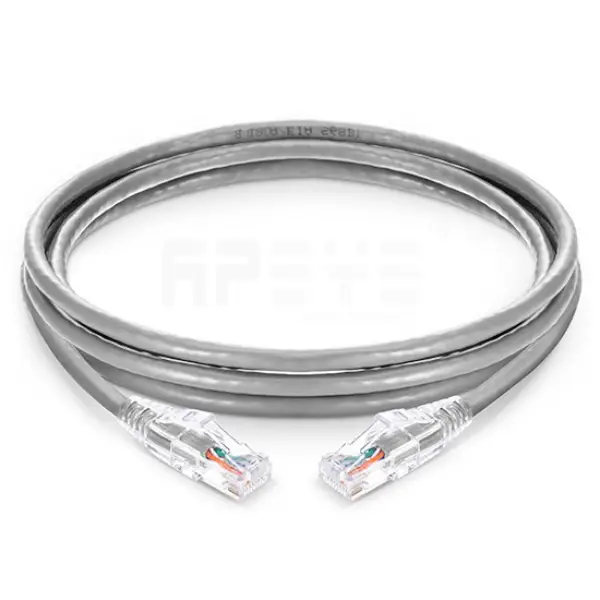

Category6A Unshielded (UTP) LSZH 01M Ethernet Network Patch Cable, Grey

COPPER SYSTEMS This Snagless Unshielded Cat6a patch cable is ideal for use with 10GBase-T ports and equipment, such as network adapters, hubs, switches, routers, DSL/cable modems and patch panels, and enables 10 Gigabit data transmission over a 4 pair copper cable allo- wing connections up to 100 meters. Current Cat6 cabling systems may only support 10 Gigabit Ethernet over limited distances. Each patch cable is fully tested to meet ANSI/ TIA 568 C.2 Cat6a channel requirements. Constructed from high quality cable and plugs, this design offers improved alien cross talk performance. The Snagless hood is ideal for high density switch applications. Available in a variety of colors to easily color-code a network installation. Individual length label on each cable for ease of use.

Product TypeCat6a Patch cord
Cable TypeCat6 Snagless
Cable JacketLow smoke zero halogen ( LSZH )
Shielding TypeUnshielded ( UTP )
Gauge (AWG)26
Wire SchemeT568B
Operating Temperature-10 to 70°C (14 to 158°F)
Conductor TypeStranded
Cable Outer Diameter (mm)6.2 ± 0.3
Twisted Pairs4 Pairs
Installation Temperature-10 to 60°C (14 to 140°F)
ColorGrey, Other colors available
Boot colorClear
CECompliant

Data Sheet
Download : 493.15 KB Format : pdf Modified : 02-12-22
CE
Download : 700.29 KB Format : pdf Modified : 02-12-22

Part NumberDescription
APPC-1GY-U6ACat6a Unshielded (UTP) LSZH 01M Patch Cable,Grey
APPC-1BL-U6ACat6a Unshielded (UTP) LSZH 01M Patch Cable,Blue
APPC-1BK-U6ACat6a Unshielded (UTP) LSZH 01M Patch Cable,Black
APPC-1GN-U6ACat6a Unshielded (UTP) LSZH 01M Patch Cable,Green
APPC-1OR-U6ACat6a Unshielded (UTP) LSZH 01M Patch Cable,Orange
APPC-1WH-U6ACat6a Unshielded (UTP) LSZH 01M Patch Cable,White
APPC-1RD-U6ACat6a Unshielded (UTP) LSZH 01M Patch Cable,Red
APPC-1YL-U6ACat6a Unshielded (UTP) LSZH 01M Patch Cable,Yellow

Specifications

Product TypeCat6a Patch cord
Cable TypeCat6 Snagless
Cable JacketLow smoke zero halogen ( LSZH )
Shielding TypeUnshielded ( UTP )
Gauge (AWG)26
Wire SchemeT568B
Operating Temperature-10 to 70°C (14 to 158°F)
Conductor TypeStranded
Cable Outer Diameter (mm)6.2 ± 0.3
Twisted Pairs4 Pairs
Installation Temperature-10 to 60°C (14 to 140°F)
ColorGrey, Other colors available
Boot colorClear
CECompliant

Manuals & Warranties

Data Sheet
Download : 493.15 KB Format : pdf Modified : 02-12-22
CE
Download : 700.29 KB Format : pdf Modified : 02-12-22
Catelogue
Catalogue
Download : 2,047.72 KB Format : pdf Modified : 02-12-22

Ordering Information

Part NumberDescription
APPC-1GY-U6ACat6a Unshielded (UTP) LSZH 01M Patch Cable,Grey
APPC-1BL-U6ACat6a Unshielded (UTP) LSZH 01M Patch Cable,Blue
APPC-1BK-U6ACat6a Unshielded (UTP) LSZH 01M Patch Cable,Black
APPC-1GN-U6ACat6a Unshielded (UTP) LSZH 01M Patch Cable,Green
APPC-1OR-U6ACat6a Unshielded (UTP) LSZH 01M Patch Cable,Orange
APPC-1WH-U6ACat6a Unshielded (UTP) LSZH 01M Patch Cable,White
APPC-1RD-U6ACat6a Unshielded (UTP) LSZH 01M Patch Cable,Red
APPC-1YL-U6ACat6a Unshielded (UTP) LSZH 01M Patch Cable,Yellow
