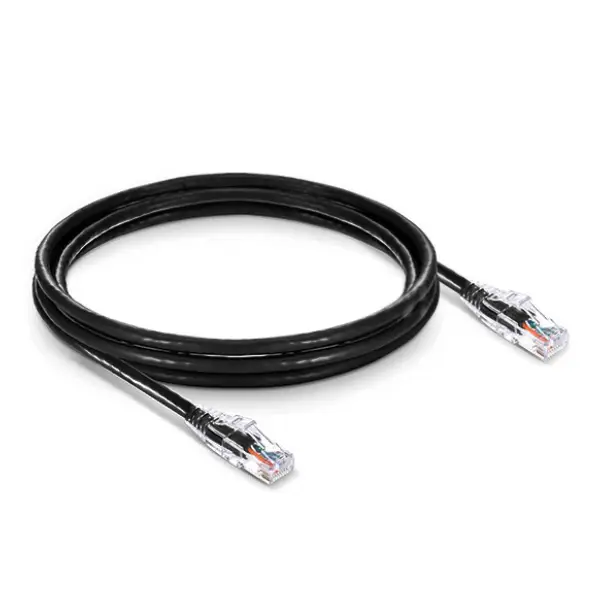

COPPER SYSTEMS Category 6 UTP patch cords shall be constructed of 24 AWG unshielded twisted pair stranded copper cable with an enhanced performance modular plug at each end. Patch cord cable shall be offered in multiple colored UTP cable for design flexibility with a clear strain relief boot on each modular plug.
| Conductor Type | Stranded |
| Shielding Type | Unshielded (UTP) |
| Operating Temperature | -20 to 60°C (-4 to 140°F) |
| Max Transmission Distance | 100m |
| Conductor Material | Copper |
| Performance Level | Category 6 |
| Data Rate Support | 1000Base-T and Maximum to 10GBase-T Gauge (AWG) 24 |
| Cable Jacket | LSZH |
| Conductor Material | Copper |
| Cable Type | Cat6 Snagless |
| Cable Outer Diameter (mm) | 6.1 ± 0.4 |
| Color | Black (BK) ,other options Green (GN), Red (RD), White (WH), Yellow (YL), Grey (GY), Blue (BL) |
| Installation Temperature | -30 to 50°C (-22 to 122°F) |
| Part Number | Description |
| APPC-05BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 0.5M Patch Cable,Black |
| APPC-1BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 01M Patch Cable,Black |
| APPC-2BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 02M Patch Cable,Black |
| APPC-3BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 03M Patch Cable,Black |
| APPC-5BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 05M Patch Cable,Black |
| APPC-10BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 10M Patch Cable,Black |
| APPC-15BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 15M Patch Cable,Black |
| APPC-20BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 20M Patch Cable,Black |
| APPC-25BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 25M Patch Cable,Black |
| Conductor Type | Stranded |
| Shielding Type | Unshielded (UTP) |
| Operating Temperature | -20 to 60°C (-4 to 140°F) |
| Max Transmission Distance | 100m |
| Conductor Material | Copper |
| Performance Level | Category 6 |
| Data Rate Support | 1000Base-T and Maximum to 10GBase-T Gauge (AWG) 24 |
| Cable Jacket | LSZH |
| Conductor Material | Copper |
| Cable Type | Cat6 Snagless |
| Cable Outer Diameter (mm) | 6.1 ± 0.4 |
| Color | Black (BK) ,other options Green (GN), Red (RD), White (WH), Yellow (YL), Grey (GY), Blue (BL) |
| Installation Temperature | -30 to 50°C (-22 to 122°F) |
| Part Number | Description |
| APPC-05BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 0.5M Patch Cable,Black |
| APPC-1BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 01M Patch Cable,Black |
| APPC-2BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 02M Patch Cable,Black |
| APPC-3BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 03M Patch Cable,Black |
| APPC-5BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 05M Patch Cable,Black |
| APPC-10BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 10M Patch Cable,Black |
| APPC-15BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 15M Patch Cable,Black |
| APPC-20BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 20M Patch Cable,Black |
| APPC-25BKZH-6SG | Apsys Networks Cat6 Snagless Unshielded (UTP) LSZH 25M Patch Cable,Black |
