APOWM-6409

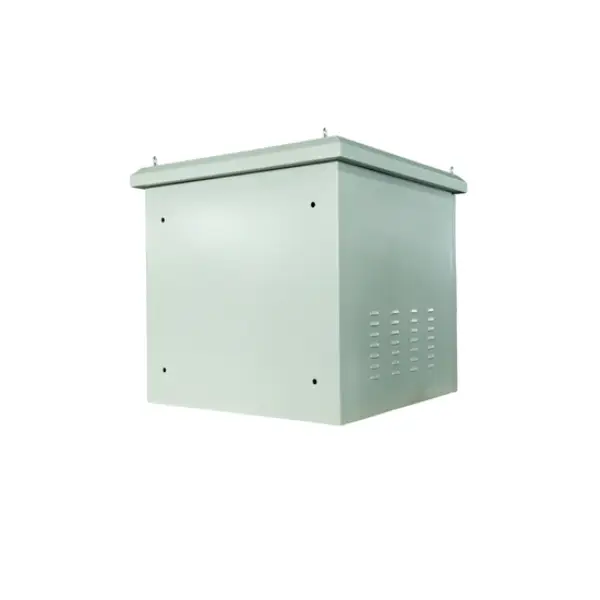

9U Wall mount Outdoor Cabinet,IP65 rated

  • Strong and stable framework of cabinet, which has the mounting holes,
  • The side panel and rear panel are the double-panel designed, the panels are fixed by the bolt from the inner,
  • Between the inside and outside side panel has the inter space,which provides the channel to ventilate and support the enclosure internal heat exchange,and also can reduce the influence of the sunlight illumination,
  • The roof panel has the awning all around stretches out to keep from the rain,the bottom of awning have holes to keep the integrity well ventilated, which guarantees the air exchange,
  • The bottom have cable entrance with rubber ring,
  • The enclosure is the 19" structure, also can install the mounting panel,
  • The top loaded with fans to ventilate, two sides panels have the blind holes to output heat.

search-icon Find a Distributor HOW TO BUY

Product TypeWall Mount Outdoor Cabinet
No. of Rack Spaces9U
Maximum Depth600mm
Maximum Width600mm
ColorRAL7035SN
Front DoorSPCC
Rear DoorSPCC
Side PanelSPCC
Static Load Capacity220.5lbs (100kg)
Mounting profile2.0mm
CECompliant
RoHSCompliant

Part NumberDescription
APOWM-64099U 600*450 Wall mount Outdoor Cabinet,IP65 rated
APOWM-66099U 600*600 Wall mount Outdoor Cabinet,IP65 rated

Related Products

feathered products
APOWM-6415 Wall mount Outdoor Cabinet
Apsys Network
Detail
feathered products
APOWM-6418 Wall mount Outdoor Cabinet
Apsys Network
Detail
feathered products
APOWM-6412 Wall mount Outdoor Cabinet
Apsys Network
Detail
feathered products
APOWM-6406 Wall mount Outdoor Cabinet
Apsys Network
Detail

Specifications

Product TypeWall Mount Outdoor Cabinet
No. of Rack Spaces9U
Maximum Depth600mm
Maximum Width600mm
ColorRAL7035SN
Front DoorSPCC
Rear DoorSPCC
Side PanelSPCC
Static Load Capacity220.5lbs (100kg)
Mounting profile2.0mm
CECompliant
RoHSCompliant

Ordering Information

Part NumberDescription
APOWM-64099U 600*450 Wall mount Outdoor Cabinet,IP65 rated
APOWM-66099U 600*600 Wall mount Outdoor Cabinet,IP65 rated
