APOF-CTU24SCL

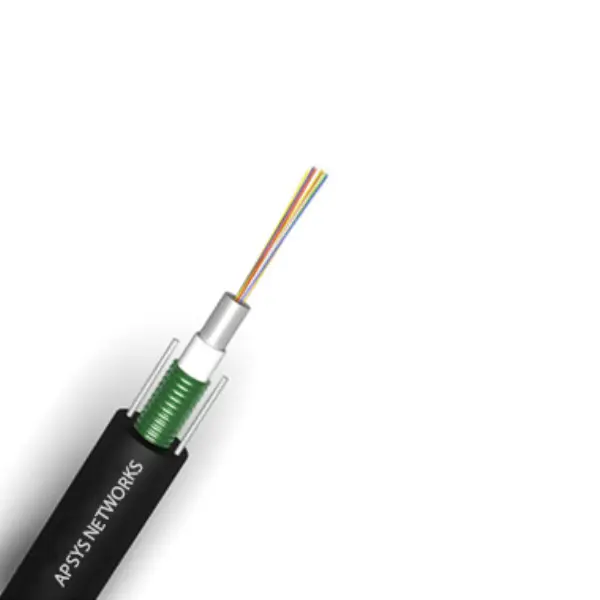

CENTRAL-TUBE UNARMOURED 24 CORE FIBER CABLE,Singlemode.

FIBER OUTDOOR CABLE

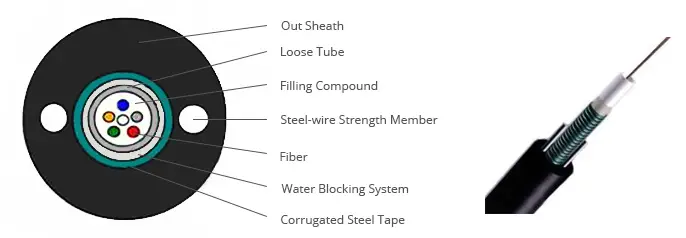

  • Up to 48 enhance low water peak single mode fibres in full compliance with ITU-T-G.652.D (also available with G655 / G656 / G657 SM Fibre and OM1 / OM2 / OM3 & OM4 MM Fibre).
  • Metallic, anti-buckling Steel rod as Strength Member. embedded in outer sheath (also available with non metallic strength member, FRP rod).
  • Loose buffer tube fully filled and Centrally placed in the cable.
  • UV Stablized PE outer sheath, black (also available with HFFR / FR PVC).

Application

Suitable for Duct Installation for CATV application, aerial application along with messanger wire.

*All images are indicative

Product TypeFiber Cable
Performance LevelSinglemode
Fiber Count24 Fiber
Diameter (mm) Nominal8.0
Weight (Kg./Km) Nominal60
Tensile strength (N) Installation1000
Tensile strength (N) Operating500
Bending Radius Temporary15D
Bending Radius Permanent20D
Installation Temperature-10° to +50° C
Operating Temperature-40° to +70° C
Color CodingBlue* Orange* Green* Brown* Grey* White* Red* Black* Yellow* Voilet* Pink* Aqua
RoHSCompliant

Part NumberDescription
APOF-CTU24SCLCENTRAL-TUBE UNARMOURED 24 CORE FIBER CABLE,Singlemode.

Specifications

Product TypeFiber Cable
Performance LevelSinglemode
Fiber Count24 Fiber
Diameter (mm) Nominal8.0
Weight (Kg./Km) Nominal60
Tensile strength (N) Installation1000
Tensile strength (N) Operating500
Bending Radius Temporary15D
Bending Radius Permanent20D
Installation Temperature-10° to +50° C
Operating Temperature-40° to +70° C
Color CodingBlue* Orange* Green* Brown* Grey* White* Red* Black* Yellow* Voilet* Pink* Aqua
RoHSCompliant

Ordering Information

Part NumberDescription
APOF-CTU24SCLCENTRAL-TUBE UNARMOURED 24 CORE FIBER CABLE,Singlemode.
