APOF-AD-10504-O4

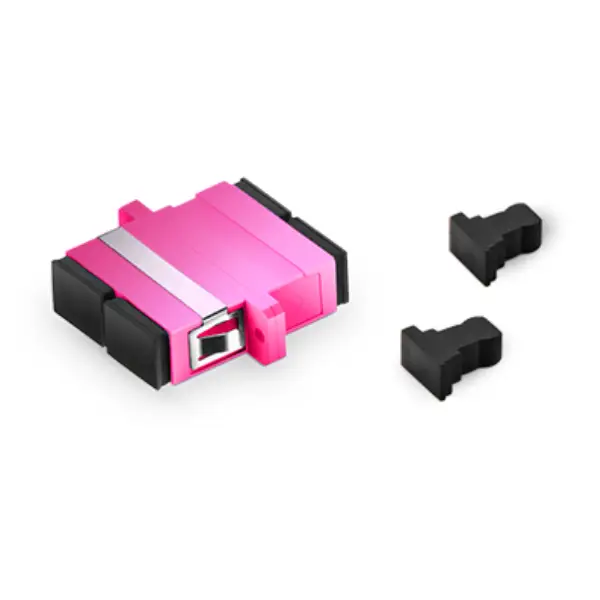

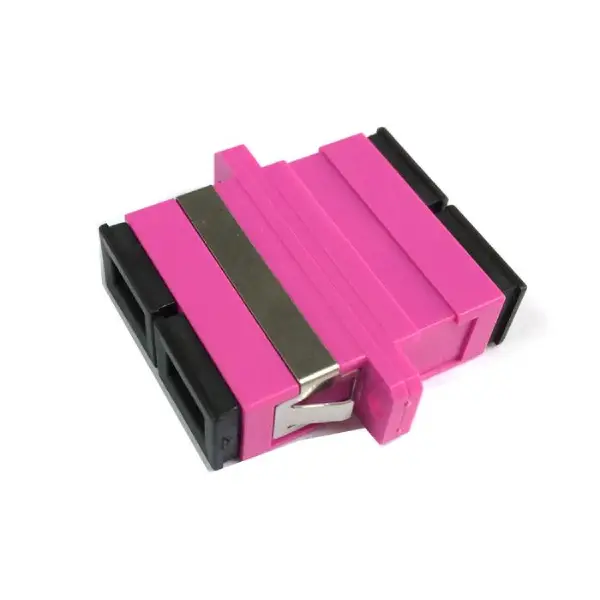

Apsys Networks SC/UPC to SC/UPC Duplex OM4 Multimode Fiber Optic Adapter, Plastic

FIBER OPTIC ADAPTERS Typical SC fiber optic adapters are with plastic housing and for single mode SC UPC it is blue color, single mode SC APC it is green color, multimode SC UPC is beige color. We also supply the metal housing SC fiber optic adapters. Most of these adapters come with ceramic sleeves, while there are bronze sleeve SC adapters which are generally multimode types. Various kinds of SC adaptors, single mode & multimode,simplex & duplex,PC & APC,Plastic body & metal body with fange & without fange.
*All images are indicative

Product TypeFiber Adapter
Performance LevelOM4-Multimode
Connector 1 typeSC Duplex
Connector 2 typeSC Duplex
Polish TypeUPC
Insertion Loss<=0.2db
Durability0.2db
Operating Temperature-40°c~85°c
Storage Temperature-40°c~85°c
Mounting TypeFlange type
ColorViolet
RoHSCompliant

Part NumberDescription
APOF-AD-10504-O4Apsys Networks SC/UPC to SC/UPC Duplex OM4 Multimode Fiber Optic Adapter, Plastic

Specifications

Product TypeFiber Adapter
Performance LevelOM4-Multimode
Connector 1 typeSC Duplex
Connector 2 typeSC Duplex
Polish TypeUPC
Insertion Loss<=0.2db
Durability0.2db
Operating Temperature-40°c~85°c
Storage Temperature-40°c~85°c
Mounting TypeFlange type
ColorViolet
RoHSCompliant

Ordering Information

Part NumberDescription
APOF-AD-10504-O4Apsys Networks SC/UPC to SC/UPC Duplex OM4 Multimode Fiber Optic Adapter, Plastic
