APOF-8002C

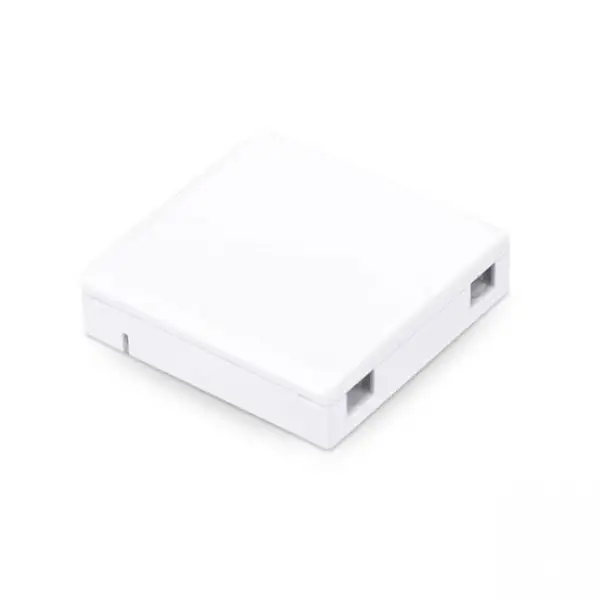

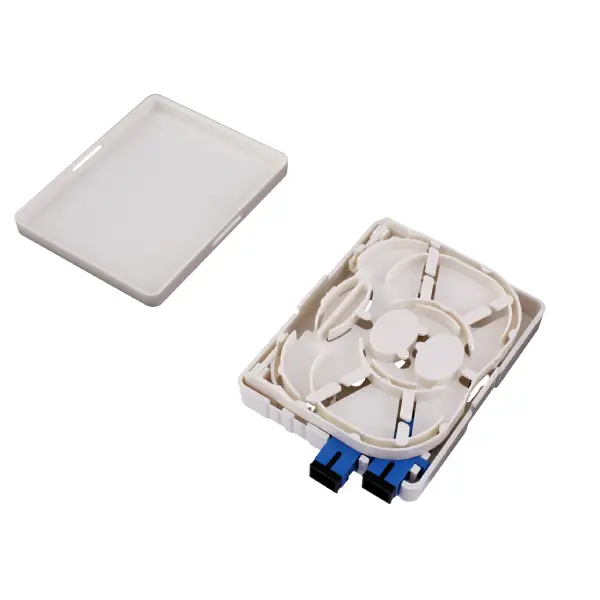

Indoor optical fiber termination box 2port with cassette

  • It is used for different kinds of modules and applied to the working area subsystem.
  • It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free
  • With application of fiber SC simplex or LC duplex and other different environment installed plate or flush plate.
  • Cable management can be connected without cutting(with express port)
  • All modules are free of welding.

Application

  • The telecommunication network, metropolitan area network, optical fiber communication system.
  • Optical testing equipment/instrument.
  • CATV optical fiber, optical fiber sensor.
  • Optical fiber broadband access network, FTTH optical fiber.
  • Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.

Product TypeINDOOR OPTICAL FIBER TERMINATION BOX
Application3.0 x 2.0 mm drop cable or indoor cable
Fiber diameter125mu ( 652 & 657 )
Tight cladding diameter250mu & 900mu
Mode of applicationSingle mode & duplex mode
Tensile strength>50 N
End-use temperature-40°C+85°C
AdaptorSC & LC
Insertion loss=<0.2dB(1310nm & 1550nm)
Output2 Port
TypeCassette

Part NumberDescription
APOF-8002CINDOOR OPTICAL FIBER TERMINATION BOX 2PORT WITHOUT CASSETTE

Specifications

Product TypeINDOOR OPTICAL FIBER TERMINATION BOX
Application3.0 x 2.0 mm drop cable or indoor cable
Fiber diameter125mu ( 652 & 657 )
Tight cladding diameter250mu & 900mu
Mode of applicationSingle mode & duplex mode
Tensile strength>50 N
End-use temperature-40°C+85°C
AdaptorSC & LC
Insertion loss=<0.2dB(1310nm & 1550nm)
Output2 Port
TypeCassette

Ordering Information

Part NumberDescription
APOF-8002CINDOOR OPTICAL FIBER TERMINATION BOX 2PORT WITHOUT CASSETTE
