APF-P-108-1U-SCA
thumbnail

APF-P-108-1U-SCA

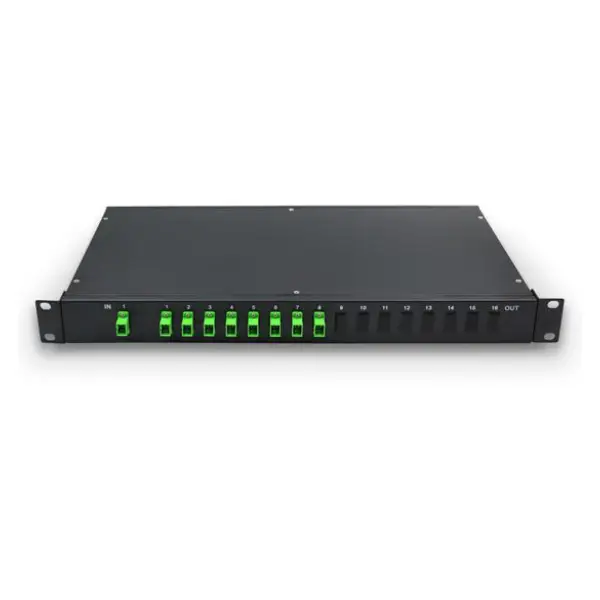

PLC Fiber Splitter, 1U 19" Rack Mount, SC/APC, Singlemode

PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.

search-icon Find a Distributor HOW TO BUY

Product TypePLC Fiber Splitter
Fiber typeG.657A1
Fiber modeSinglemode
Configuration Type1x2 - 2x64
Connector TypeSC
Polish TypeAPC
TypeRack Mount
Operating Temperature-40°C ~ 85°C
Storage Temperature-40°C ~ 85°C
Operating wavelength1260~1650nm
Split Ratio50/50
Dimensions (HxWxD)44x482.6x250mm

Part NumberDescription
APF-P-102-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,1x2 Singlemode
APF-P-104-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,1x4 Singlemode
APF-P-108-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,1x8 Singlemode
APF-P-116-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,1x16 Singlemode
APF-P-132-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,1x32 Singlemode
APF-P-164-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,1x64 Singlemode
APF-P-202-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,2x2 Singlemode
APF-P-204-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,2x4 Singlemode
APF-P-208-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,2x8 Singlemode
APF-P-216-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,2x16 Singlemode
APF-P-232-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,2x32 Singlemode
APF-P-264-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,2x64 Singlemode

Related Products

feathered products
APF-P102AB-SC-APC PLC Splitters
Apsys Network
Detail
feathered products
APF-P102M-SC-APC PLC Splitters
Apsys Network
Detail
feathered products
APF-PLC102-SS PLC Splitters
Apsys Network
Detail

Specifications

Product TypePLC Fiber Splitter
Fiber typeG.657A1
Fiber modeSinglemode
Configuration Type1x2 - 2x64
Connector TypeSC
Polish TypeAPC
TypeRack Mount
Operating Temperature-40°C ~ 85°C
Storage Temperature-40°C ~ 85°C
Operating wavelength1260~1650nm
Split Ratio50/50
Dimensions (HxWxD)44x482.6x250mm

Ordering Information

Part NumberDescription
APF-P-102-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,1x2 Singlemode
APF-P-104-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,1x4 Singlemode
APF-P-108-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,1x8 Singlemode
APF-P-116-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,1x16 Singlemode
APF-P-132-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,1x32 Singlemode
APF-P-164-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,1x64 Singlemode
APF-P-202-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,2x2 Singlemode
APF-P-204-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,2x4 Singlemode
APF-P-208-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,2x8 Singlemode
APF-P-216-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,2x16 Singlemode
APF-P-232-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,2x32 Singlemode
APF-P-264-1U-SCAPLC Fiber Splitter, 1U 19" Rack Mount, SC/APC,2x64 Singlemode
