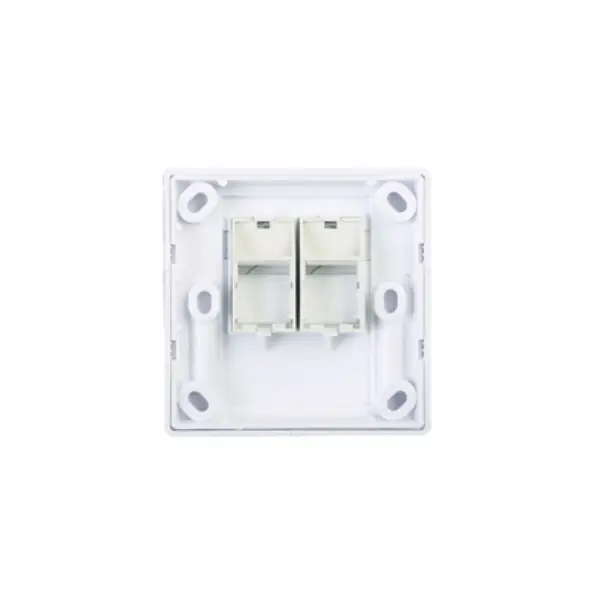

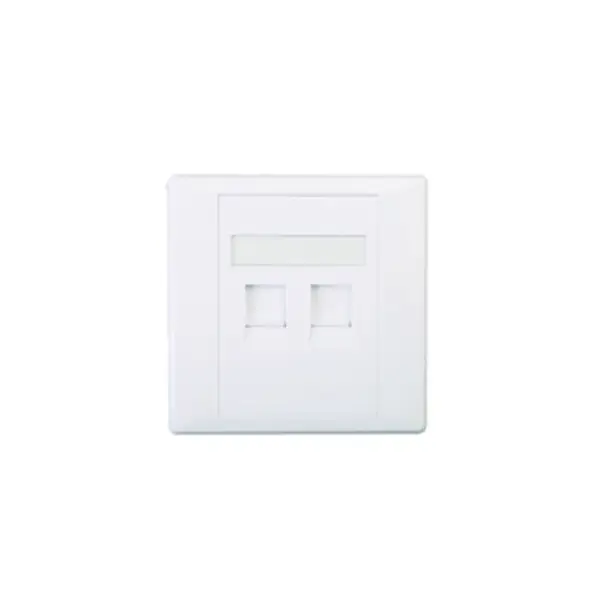

APF-020

British style Faceplate 86mm x 86mm 2 Port Non-visible screw type, Shuttered design.

The faceplate is made from high-impact ABS plastic, for years of durable use. faceplates are manufactured of highly stable flame retardant and high-quality plastics which ensure product durability. It comes with a combination of 1 or 2 ports for your applica- tion and to satisfy your customer’s needs. faceplates are available in the elegant series which comes with a peripheral frame pro- viding an elegant appearance where in the screw holes are concealed by the peripheral frame.Part of the design is the integrated label holder which allow the installer to fix labels and hence making the faceplate TIA 606 compliant.The faceplate comes with an in-built shutter to prevent dust and dampness protection.

Product TypeFaceplate British Type
Number of Ports2
MaterialPC/ABS, Crash worthy, Fire-resistant, Anti-wallop
Identification TypeLabel Pocket
Outlet OrientationShuttered
Overall Width (In.)3.38
Overall Width (mm)86
Overall Depth (In.)0.94
Overall Depth (mm)24
Overall Height (In.)3.38
Overall Height (mm)86
RoHS CompianceCompliant

Data Sheet
Download : 949.67 KB Format : pdf Modified : 02-12-22
RoHS
Download : 689.79 KB Format : pdf Modified : 02-12-22

Part NumberDescription
APF-020British style Faceplate 86mm x 86mm 2 Port Non-visible screw type, Shuttered design.

Specifications

Product TypeFaceplate British Type
Number of Ports2
MaterialPC/ABS, Crash worthy, Fire-resistant, Anti-wallop
Identification TypeLabel Pocket
Outlet OrientationShuttered
Overall Width (In.)3.38
Overall Width (mm)86
Overall Depth (In.)0.94
Overall Depth (mm)24
Overall Height (In.)3.38
Overall Height (mm)86
RoHS CompianceCompliant

Manuals & Warranties

Data Sheet
Download : 949.67 KB Format : pdf Modified : 02-12-22
RoHS
Download : 689.79 KB Format : pdf Modified : 02-12-22

Ordering Information

Part NumberDescription
APF-020British style Faceplate 86mm x 86mm 2 Port Non-visible screw type, Shuttered design.
