APOF-IDF-H02SCL
thumbnail
thumbnail

APOF-IDF-H02SCL

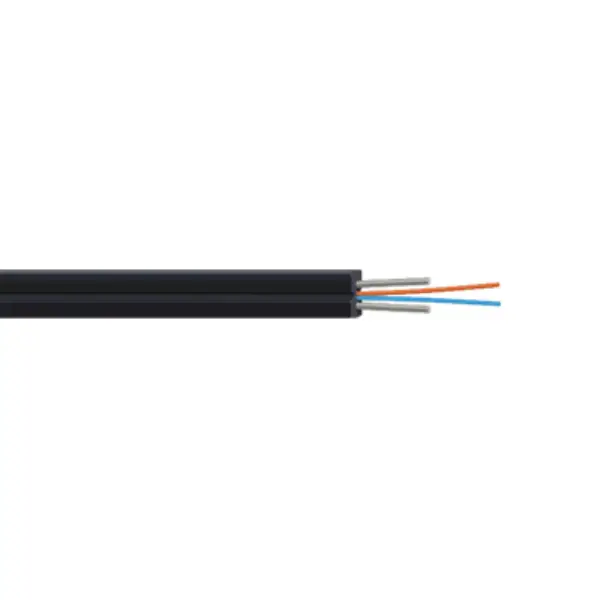

FTTH INDOOR 2 CORE DROP CABLE,SM/MM

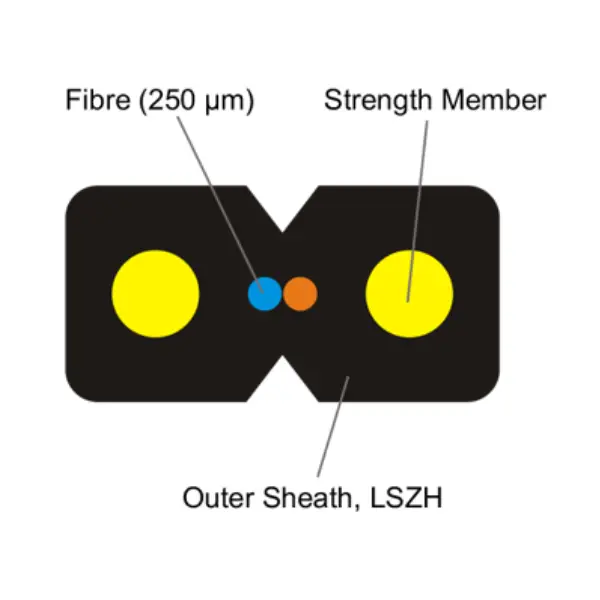

  • Up to 2 enhance low water peak single mode fibres in full compliance with ITU-T-G.652.D (also available with G657 SM Fibre and OM1 / OM2 / OM3 & OM4 MM Fibre)
  • FRP / ARP rod as strength member
  • Steel wire as integrated messenger wire
  • LSZH shealth

Application

  • Drop Cable suitable for aerial application.

search-icon Find a Distributor HOW TO BUY

Product TypeFiber Cable
Performance LevelSM/MM
Fiber Count2 Fiber
Diameter (mm) Nominal2.0 X 3.0
Weight (Kg./Km) Nominal8
Tensile strength (N) Installation40
Tensile strength (N) Operating20
Bending Radius Temporary30
Bending Radius Permanent50
Installation Temperature-20° to +70° C
Operating Temperature-40° to +70° C
Color CodingBlue* Orange*
RoHSCompliant

Part NumberDescription
APOF-IDF-H02SCLFTTH INDOOR 2 CORE DROP CABLE,SINGLEMODE
APOF-IDF-H02MCLFTTH INDOOR 2 CORE DROP CABLE,MULTIMODE OM1/OM2
APOF-IDF-H02M3CLFTTH INDOOR 2 CORE DROP CABLE,MULTIMODE OM3
APOF-IDF-H02M4CLFTTH INDOOR 2 CORE DROP CABLE,MULTIMODE OM4
