API-F652D-MCS72

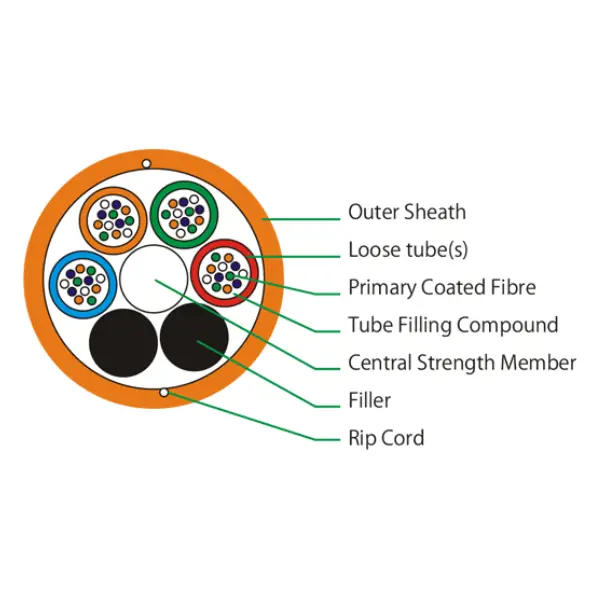

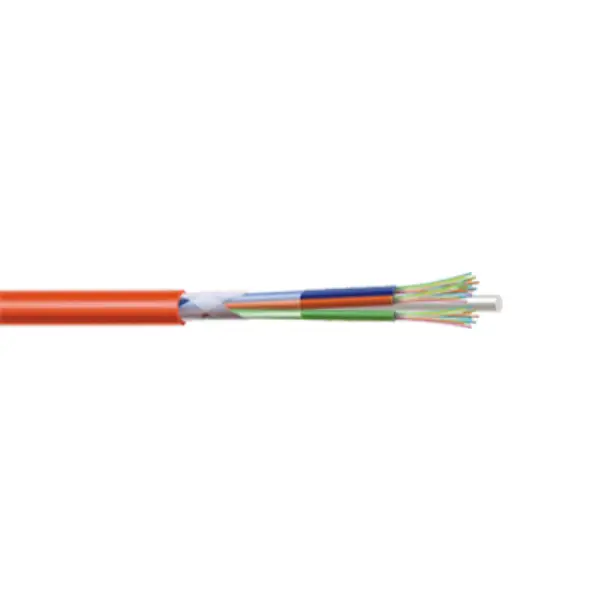

MICRO CABLE Multitube Design 72 CORE FIBER CABLE,SM/MM

  • Upto 144 fibers in full compliance with ITU-T-G 652 D (also available with G655 / G656 / G657 SM Fibre and OM1 OM2 / OM3 & OM4 MM Fibre)
  • Non metallic, anti-buckling FRP rod as Central Strength Member (PE upcoated for 144 F)
  • Loose buffer tubes fully filled, S-Z Stranded
  • Rip cords for easy stripping
  • Insect and Termite resistant PA-12 outer sheath, Orange (also available with PE outer sheath)

Application

  • Suitable for installation in Micro Duct

*All images are indicative

search-icon Find a Distributor HOW TO BUY

Product TypeFiber Cable
Performance LevelSM/MM
Fiber Count72 Fiber
Diameter (mm) Nominal5.7
Weight (Kg./Km) Nominal27
Tensile strength (N) Installation650
Tensile strength (N) Operating400
Bending Radius Temporary15D
Bending Radius Permanent20D
Installation Temperature-20° to +70° C
Operating Temperature-40° to +70° C
Color CodingBlue* Orange* Green* Brown* Grey* White* Red* Black* Yellow* Violet* Pink* Aqua*
RoHSCompliant

Part NumberDescription
API-F652D-MCS72MICRO CABLE Multitube Design 72 CORE FIBER CABLE,SM
API-F652D-MCM72MICRO CABLE Multitube Design 72 CORE FIBER CABLE,MM OM1/OM2
API-F652D-MCM372MICRO CABLE Multitube Design 72 CORE FIBER CABLE,MM OM3
API-F652D-MCM472MICRO CABLE Multitube Design 72 CORE FIBER CABLE,MM OM4
