APOF-8004B
thumbnail

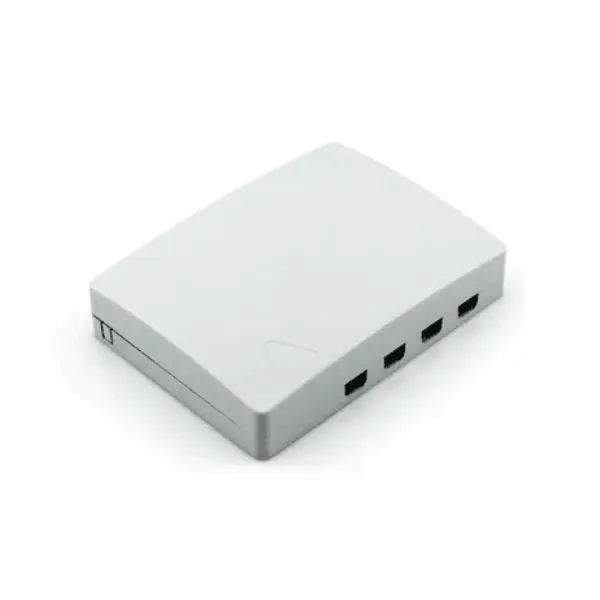

APOF-8004B

INDOOR OPTICAL FIBER TERMINATION BOX 4PORT WITH CASSETTE

  • It is used for different kinds of modules and applied to the working area subsystem.
  • It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free
  • With application of fiber SC simplex or LC duplex and other different environment installed plate or flush plate.
  • Cable management can be connected without cutting(with express port)
  • All modules are free of welding.
Application
  • The telecommunication network, metropolitan area network, optical fiber communication system.
  • Optical testing equipment/instrument.
  • CATV optical fiber, optical fiber sensor.
  • Optical fiber broadband access network, FTTH optical fiber.
  • Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.

search-icon Find a Distributor HOW TO BUY

Product TypeINDOOR OPTICAL FIBER TERMINATION
Application3.0 x 2.0 mm drop cable or indoor cable
Fiber diameter125mu ( 652 & 657 )
Tight cladding diameter250mu & 900mu
Mode of applicationSingle mode & duplex mode
Tensile strength>50 N
End-use temperature-40?+85?
AdaptorSC & LC
Insertion loss?0.2dB?1310nm & 1550nm?
Output4
TypeCassette

Part NumberDescription
APOF-8004BINDOOR OPTICAL FIBER TERMINATION BOX 4PORT WITH CASSETTE

Related Products

feathered products
APOF-8002B ODF Box
Apsys Network
Detail
feathered products
APOF-8002C ODF Box
Apsys Network
Detail

Specifications

Product TypeINDOOR OPTICAL FIBER TERMINATION
Application3.0 x 2.0 mm drop cable or indoor cable
Fiber diameter125mu ( 652 & 657 )
Tight cladding diameter250mu & 900mu
Mode of applicationSingle mode & duplex mode
Tensile strength>50 N
End-use temperature-40?+85?
AdaptorSC & LC
Insertion loss?0.2dB?1310nm & 1550nm?
Output4
TypeCassette

Ordering Information

Part NumberDescription
APOF-8004BINDOOR OPTICAL FIBER TERMINATION BOX 4PORT WITH CASSETTE
