APOF-8002B
thumbnail

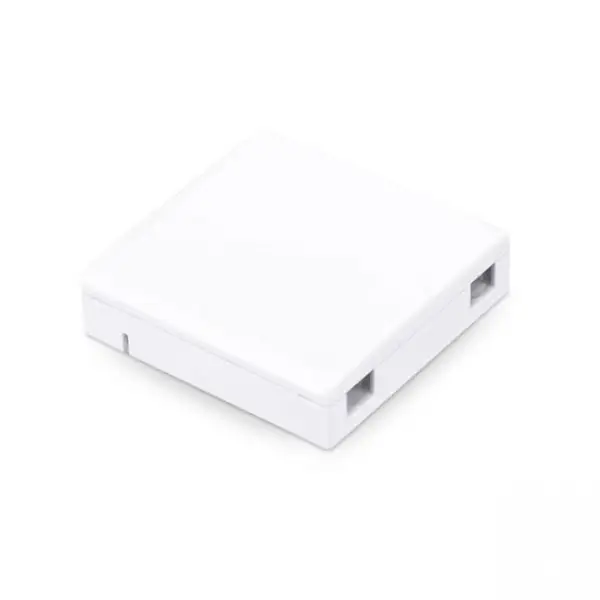

APOF-8002B

INDOOR OPTICAL FIBER TERMINATION BOX 2PORT WITHOUT CASSETTE

  • Suitable for multi type module installation, application in the work area routing subsystem
  • The embedded surface box,installation, convenient disassembly with protective door, dust;
  • Application of optical fiber with SC simplex or LC duplex different environment bright dress, flush plate. A combination of all the modules can be according to customer selection and configuration.
  • All modules are free welding mode.
Application
  • The telecommunication network, metropolitan area network, optical fiber communication system
  • Optical fiber test instrument / meter
  • Optical fiber CATV, fiber optic sensor
  • Fiber broadband access network, FTTH fiber into the home
  • Optical fiber distribution frame, frame type and wall hung type optical fiber distribution unit

search-icon Find a Distributor HOW TO BUY

Product TypeINDOOR OPTICAL FIBER TERMINATION BOX
Usage range3.0 x 2.0 mm indoor cable
Dimension86*86*24
Fiber diameter125mu ( 652 & 657 )
Cladding diameter250mu & 900mu
Applicable modeSingle mode and multimode
Tensile strength>50 N
End-use temperature-40°C+85°C
AdaptorSC & LC
Insertion loss=<0.2dB(1310nm & 1550nm)
Output2 Port
TypeWithout Cassette

Part NumberDescription
APOF-8002BINDOOR OPTICAL FIBER TERMINATION BOX 2PORT WITHOUT CASSETTE

Related Products

feathered products
APOF-8004B ODF Box
Apsys Network
Detail
feathered products
APOF-8002C ODF Box
Apsys Network
Detail

Specifications

Product TypeINDOOR OPTICAL FIBER TERMINATION BOX
Usage range3.0 x 2.0 mm indoor cable
Dimension86*86*24
Fiber diameter125mu ( 652 & 657 )
Cladding diameter250mu & 900mu
Applicable modeSingle mode and multimode
Tensile strength>50 N
End-use temperature-40°C+85°C
AdaptorSC & LC
Insertion loss=<0.2dB(1310nm & 1550nm)
Output2 Port
TypeWithout Cassette

Ordering Information

Part NumberDescription
APOF-8002BINDOOR OPTICAL FIBER TERMINATION BOX 2PORT WITHOUT CASSETTE
