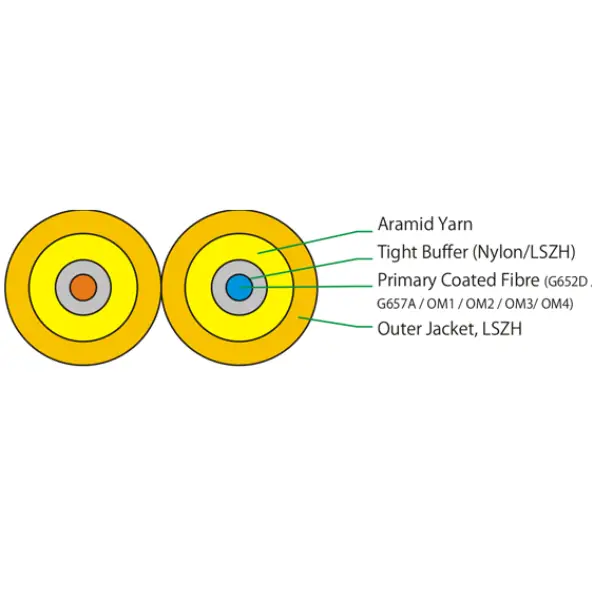

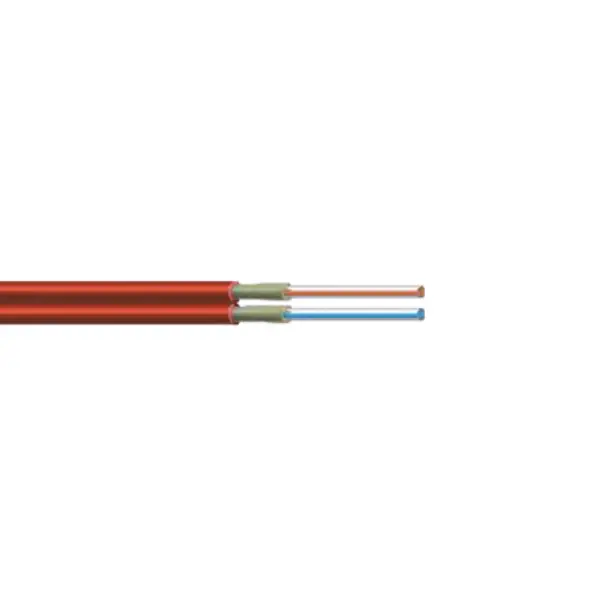

Zipcord cables are designed for interconnect applications. Two 900μm buffered fibers are surrounded by aramid yarn strength members and a flame-retardant LSZH jacket.
Application
*All images are indicative
| Product Type | Fiber Cable |
| Performance Level | Singlemode |
| Fiber Count | 2 Fiber |
| Flammability Rating | LSZH |
| Diameter (mm) Nominal | 1.6/2.0/3.0 |
| Weight (Kg./Km) Nominal | 15 |
| Tensile Strength (long/short term) | 100/200N |
| Bending Radius Temporary | 10D |
| Bending Radius Permanent | 20D |
| Installation Temperature | -20° to +50° C |
| Operating Temperature | -40° to +70° C |
| Fiber Type | G.652D |
| RoHS | Compliant |
| Part Number | Description |
| APOF-ZTBI02C | Zipcord, LSZH, Indoor Tight-Buffered Interconnect 2 Core Fiber Optical Cable,Singlemode |
| Product Type | Fiber Cable |
| Performance Level | Singlemode |
| Fiber Count | 2 Fiber |
| Flammability Rating | LSZH |
| Diameter (mm) Nominal | 1.6/2.0/3.0 |
| Weight (Kg./Km) Nominal | 15 |
| Tensile Strength (long/short term) | 100/200N |
| Bending Radius Temporary | 10D |
| Bending Radius Permanent | 20D |
| Installation Temperature | -20° to +50° C |
| Operating Temperature | -40° to +70° C |
| Fiber Type | G.652D |
| RoHS | Compliant |
| Part Number | Description |
| APOF-ZTBI02C | Zipcord, LSZH, Indoor Tight-Buffered Interconnect 2 Core Fiber Optical Cable,Singlemode |
