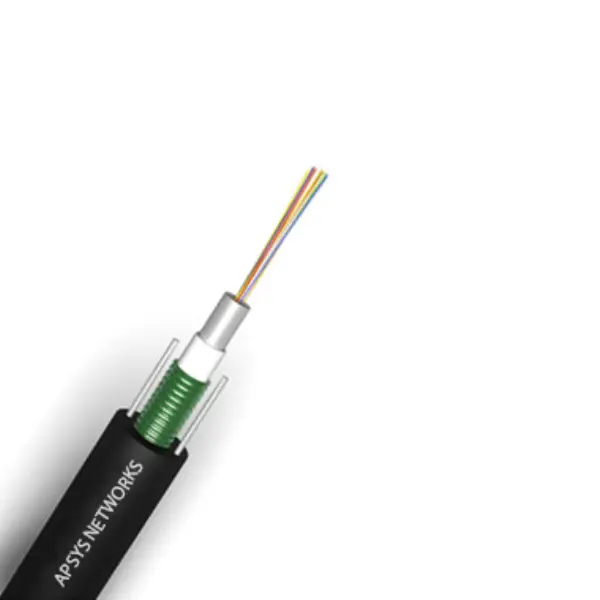

FIBER OUTDOOR CABLE
Application
Suitable for Duct Installation for CATV application, aerial application along with messanger wire.
*All images are indicative
| Product Type | Fiber Cable |
| Performance Level | Multimode |
| Fiber Count | 6 Fiber |
| Diameter (mm) Nominal | 6.0 |
| Weight (Kg./Km) Nominal | 40 |
| Tensile strength (N) Installation | 1000 |
| Tensile strength (N) Operating | 500 |
| Bending Radius Temporary | 15D |
| Bending Radius Permanent | 20D |
| Installation Temperature | -10° to +50° C |
| Operating Temperature | -40° to +70° C |
| Color Coding | Blue* Orange* Green* Brown* Grey* White* Red* Black* Yellow* Voilet* Pink* Aqua |
| RoHS | Compliant |
| Part Number | Description |
| APOF-CTU06MCL | CENTRAL-TUBE UNARMOURED 6 CORE FIBER CABLE,Multimode OM1/OM2 |
| APOF-CTU06M3CL | CENTRAL-TUBE UNARMOURED 6 CORE FIBER CABLE,Multimode OM3 |
| APOF-CTU06M4CL | CENTRAL-TUBE UNARMOURED 6 CORE FIBER CABLE,Multimode OM4 |
| Product Type | Fiber Cable |
| Performance Level | Multimode |
| Fiber Count | 6 Fiber |
| Diameter (mm) Nominal | 6.0 |
| Weight (Kg./Km) Nominal | 40 |
| Tensile strength (N) Installation | 1000 |
| Tensile strength (N) Operating | 500 |
| Bending Radius Temporary | 15D |
| Bending Radius Permanent | 20D |
| Installation Temperature | -10° to +50° C |
| Operating Temperature | -40° to +70° C |
| Color Coding | Blue* Orange* Green* Brown* Grey* White* Red* Black* Yellow* Voilet* Pink* Aqua |
| RoHS | Compliant |
| Part Number | Description |
| APOF-CTU06MCL | CENTRAL-TUBE UNARMOURED 6 CORE FIBER CABLE,Multimode OM1/OM2 |
| APOF-CTU06M3CL | CENTRAL-TUBE UNARMOURED 6 CORE FIBER CABLE,Multimode OM3 |
| APOF-CTU06M4CL | CENTRAL-TUBE UNARMOURED 6 CORE FIBER CABLE,Multimode OM4 |
